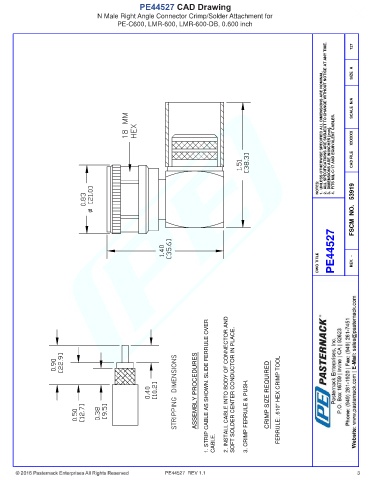

PE44527 CAD Drawing
N Male Right Angle Connector Crimp/Solder Attachment for
PE-C600, LMR-600, LMR-600-DB, 0.600 inch

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. XXXXXX CAD FILE

NOTES:
FSCM NO. 53919

PE44527

DWG TITLE REV. -

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. SLIDE FERRULE OVER 2. INSTALL CABLE INTO BODY OF CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN PLACE. 3. CRIMP FERRULE & PUSH. CRIMP SIZE REQUIRED FERRULE: .610" HEX CRIMP TOOL

CABLE.

PE44527 REV 1.1 3
