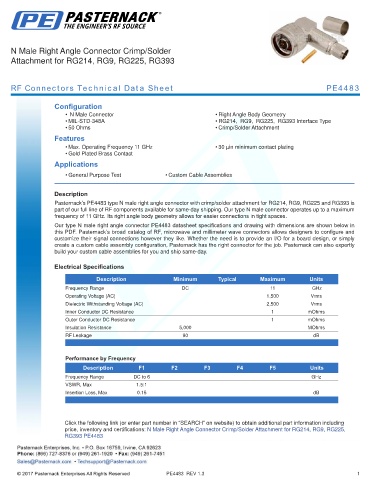

N Male Right Angle Connector Crimp/Solder
Attachment for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE4483

Configuration
• N Male Connector • Right Angle Body Geometry
• MIL-STD-348A • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4483 type N male right angle connector with crimp/solder attachment for RG214, RG9, RG225 and RG393 is
part of our full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum
frequency of 11 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our type N male right angle connector PE4483 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,500 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
Inner Conductor DC Resistance 1 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
RF Leakage 90 dB
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 6 GHz
VSWR, Max 1.5:1
Insertion Loss, Max 0.15 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle Connector Crimp/Solder Attachment for RG214, RG9, RG225,
RG393 PE4483

PE4483 REV 1.3 1
