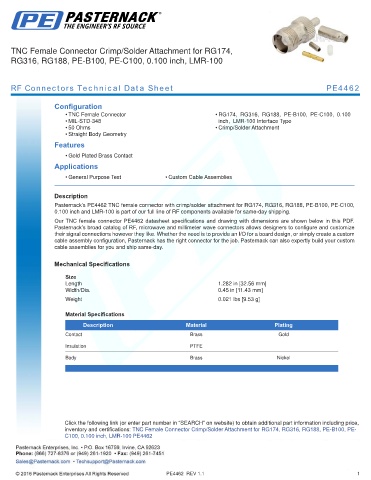

TNC Female Connector Crimp/Solder Attachment for RG174,
RG316, RG188, PE-B100, PE-C100, 0.100 inch, LMR-100

RF Connectors Technical Data Sheet PE4462

Configuration
• TNC Female Connector • RG174, RG316, RG188, PE-B100, PE-C100, 0.100
• MIL-STD-348 inch, LMR-100 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4462 TNC female connector with crimp/solder attachment for RG174, RG316, RG188, PE-B100, PE-C100,
0.100 inch and LMR-100 is part of our full line of RF components available for same-day shipping.
Our TNC female connector PE4462 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.282 in [32.56 mm]
Width/Dia. 0.45 in [11.43 mm]
.
Weight 0.021 lbs [9.53 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Connector Crimp/Solder Attachment for RG174, RG316, RG188, PE-B100, PE-
C100, 0.100 inch, LMR-100 PE4462

PE4462 REV 1.1 1
