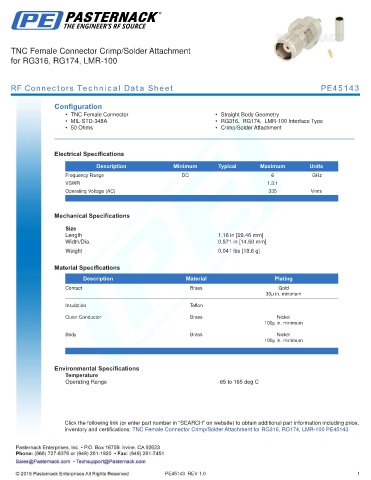

TNC Female Connector Crimp/Solder Attachment
for RG316, RG174, LMR-100

RF Connectors Technical Data Sheet PE45143

Configuration
• TNC Female Connector • Straight Body Geometry
• MIL-STD-348A • RG316, RG174, LMR-100 Interface Type
• 50 Ohms • Crimp/Solder Attachment
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications
Size
Length 1.16 in [29.46 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications

Description Material Plating
Contact Brass Gold
30µ in. minimum
Insulation Teflon

Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Connector Crimp/Solder Attachment for RG316, RG174, LMR-100 PE45143

PE45143 REV 1.0 1
