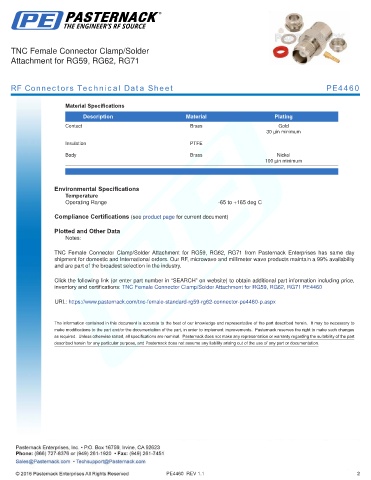

TNC Female Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4460

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Female Connector Clamp/Solder Attachment for RG59, RG62, RG71 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4460

URL: https://www.pasternack.com/tnc-female-standard-rg59-rg62-connector-pe4460-p.aspx

PE4460 REV 1.1 2
