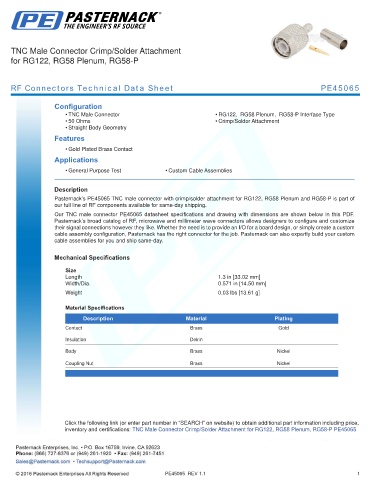

TNC Male Connector Crimp/Solder Attachment
for RG122, RG58 Plenum, RG58-P

RF Connectors Technical Data Sheet PE45065

Configuration
• TNC Male Connector • RG122, RG58 Plenum, RG58-P Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45065 TNC male connector with crimp/solder attachment for RG122, RG58 Plenum and RG58-P is part of
our full line of RF components available for same-day shipping.
Our TNC male connector PE45065 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.3 in [33.02 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.03 lbs [13.61 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation Delrin

Body Brass Nickel
Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Crimp/Solder Attachment for RG122, RG58 Plenum, RG58-P PE45065

PE45065 REV 1.1 1
