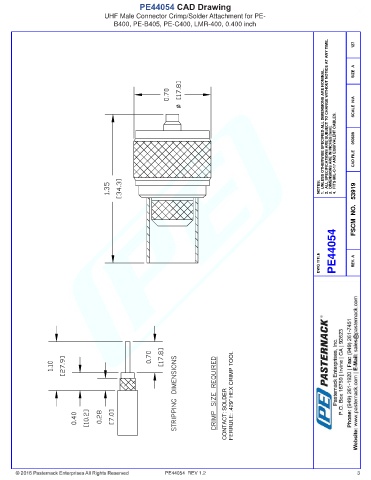

PE44054 CAD Drawing
UHF Male Connector Crimp/Solder Attachment for PE-
B400, PE-B405, PE-C400, LMR-400, 0.400 inch
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 050609 CAD FILE
NOTES:
FSCM NO. 53919
PE44054
DWG TITLE REV. A
CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL
PE44054 REV 1.2 3
