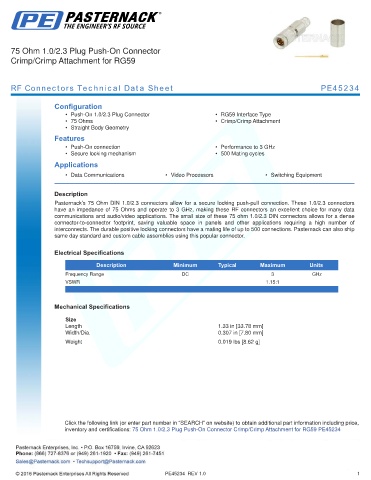

75 Ohm 1.0/2.3 Plug Push-On Connector
Crimp/Crimp Attachment for RG59

RF Connectors Technical Data Sheet PE45234

Configuration
• Push-On 1.0/2.3 Plug Connector • RG59 Interface Type
• 75 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Push-On connection • Performance to 3 GHz
• Secure locking mechanism • 500 Mating cycles
Applications
• Data Communications • Video Processors • Switching Equipment
.
Description
Pasternack’s 75 Ohm DIN 1.0/2.3 connectors allow for a secure locking push-pull connection. These 1.0/2.3 connectors
have an impedance of 75 Ohms and operate to 3 GHz, making these RF connectors an excellent choice for many data
communications and audio/video applications. The small size of these 75 ohm 1.0/2.3 DIN connectors allows for a dense
connector-to-connector footprint, saving valuable space in panels and other applications requiring a high number of
interconnects. The durable positive locking connectors have a mating life of up to 500 connections. Pasternack can also ship
same day standard and custom cable assemblies using this popular connector.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.15:1
.

Mechanical Specifications

Size
Length 1.33 in [33.78 mm]
Width/Dia. 0.307 in [7.80 mm]
.
Weight 0.019 lbs [8.62 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.0/2.3 Plug Push-On Connector Crimp/Crimp Attachment for RG59 PE45234

PE45234 REV 1.0 1
