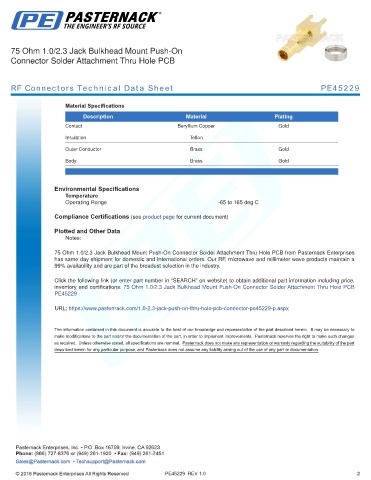

75 Ohm 1.0/2.3 Jack Bulkhead Mount Push-On
Connector Solder Attachment Thru Hole PCB

RF Connectors Technical Data Sheet PE45229

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold

Insulation Teflon
Outer Conductor Brass Gold
Body Brass Gold

.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm 1.0/2.3 Jack Bulkhead Mount Push-On Connector Solder Attachment Thru Hole PCB from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.0/2.3 Jack Bulkhead Mount Push-On Connector Solder Attachment Thru Hole PCB
PE45229

URL: https://www.pasternack.com/1.0-2.3-jack-push-on-thru-hole-pcb-connector-pe45229-p.aspx

PE45229 REV 1.0 2
