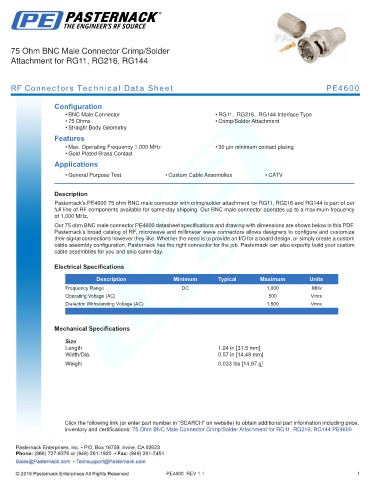

75 Ohm BNC Male Connector Crimp/Solder
Attachment for RG11, RG216, RG144

RF Connectors Technical Data Sheet PE4600

Configuration
• BNC Male Connector • RG11, RG216, RG144 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE4600 75 ohm BNC male connector with crimp/solder attachment for RG11, RG216 and RG144 is part of our
full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency
of 1,000 MHz.
Our 75 ohm BNC male connector PE4600 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.24 in [31.5 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.033 lbs [14.97 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Crimp/Solder Attachment for RG11, RG216, RG144 PE4600

PE4600 REV 1.1 1
