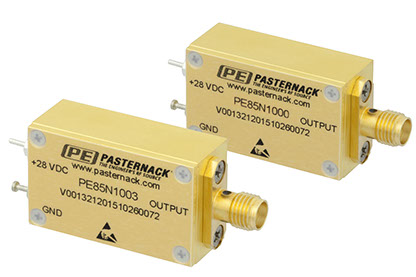

Broadband Calibrated Noise Sources

Broadband Calibrated Noise Sources

Calibrated noise source series for broadband applications
are in-stock and available to ship the same day!

Pasternack's series of coaxial packaged broadband calibrated noise sources cover a wide frequency range. Broadband calibrated noise sources frequencies span from 10 KHz to 18 GHz. These RF noise source components generate noise output ENR levels ranging from 15 to 30 dB with excellent flatness and stability over temperature.


Part No.

& Additional

Views

Frequency
Range
(GHz)

Noise Output ENR (dB)

Typical ENR Flatness
(dB)

Temperature Coefficient /
Noise Output Variation

Calibrated
Frequencies
(MHz)

Bias
Voltage
(Vdc)

DC
Connector

RF Output
Connector

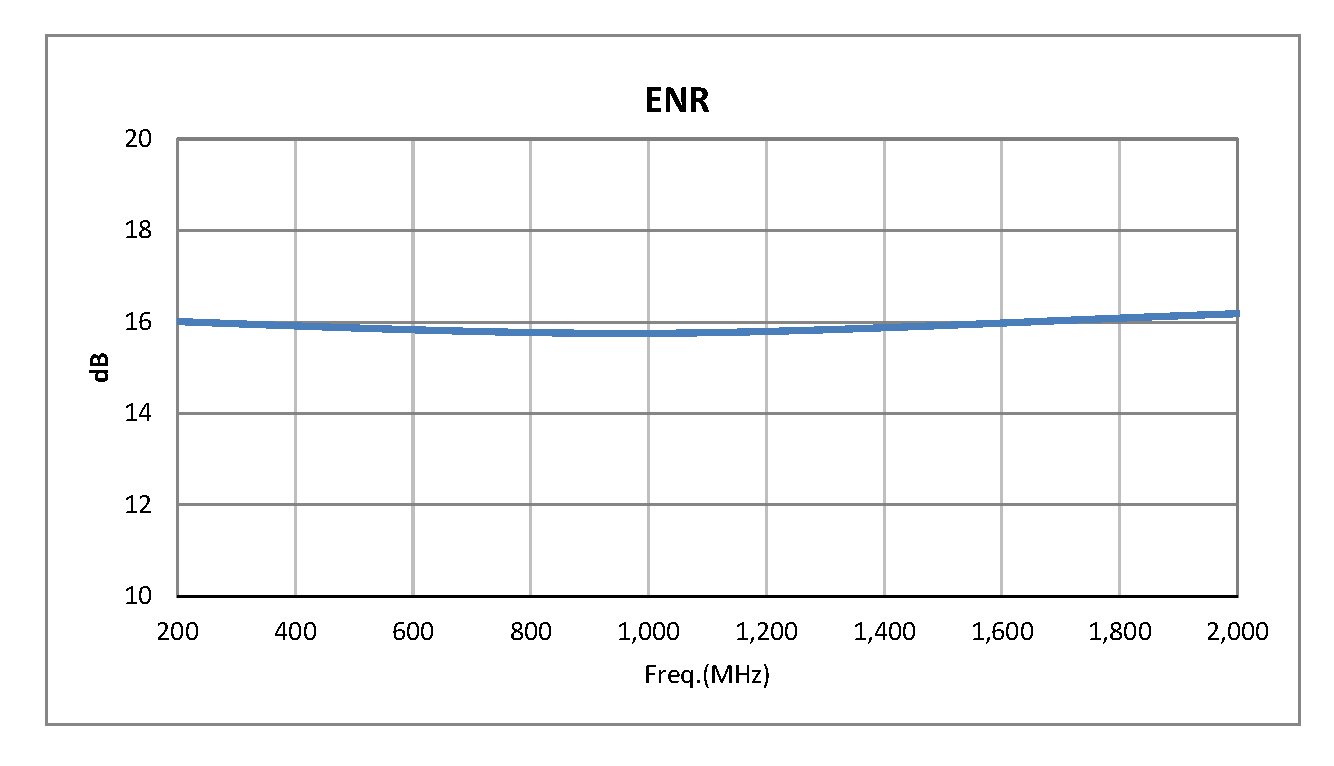

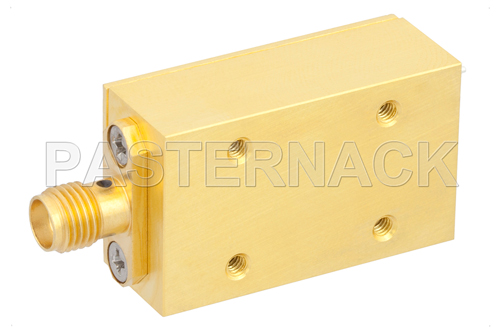

SMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 0.01 MHz to 2 GHz   PE85N1000

0.00001 - 2

15

± 1.5

< 0.01 dB/°C
< 0.1 dB/%V

10, 100, 1000, 2000

+28

DC Pin

SMA Female
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 0.01 MHz to 2 GHz
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 0.01 MHz to 2 GHz
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 0.01 MHz to 2 GHz

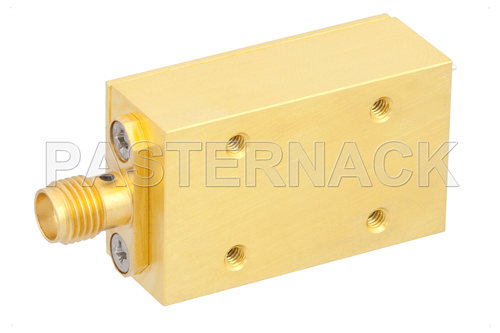

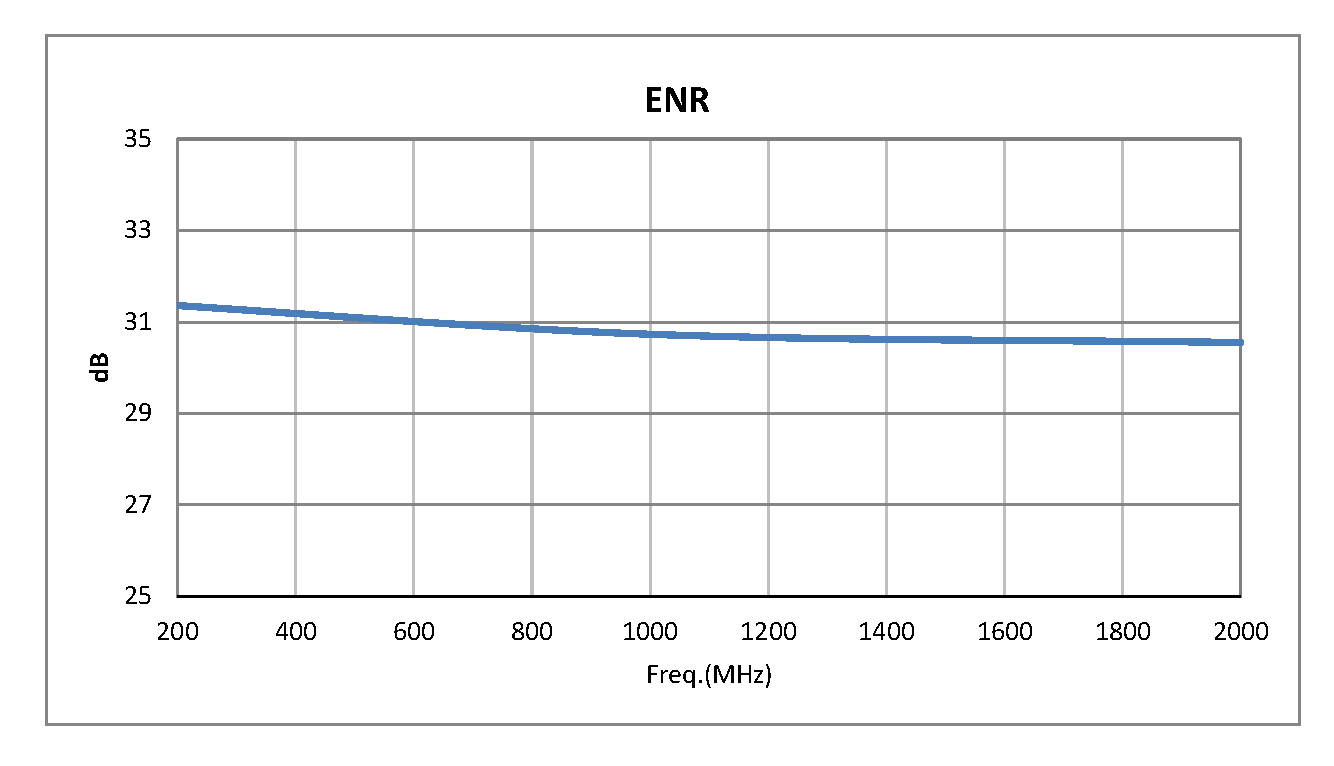

SMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 30 dB From 0.01 MHz to 2 GHz   PE85N1001

0.00001 - 2

30

± 1.5

< 0.01 dB/°C
< 0.1 dB/%V

10, 100, 1000, 2000

+28

DC Pin

SMA Female
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 30 dB From 0.01 MHz to 2 GHz
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 30 dB From 0.01 MHz to 2 GHz
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 30 dB From 0.01 MHz to 2 GHz

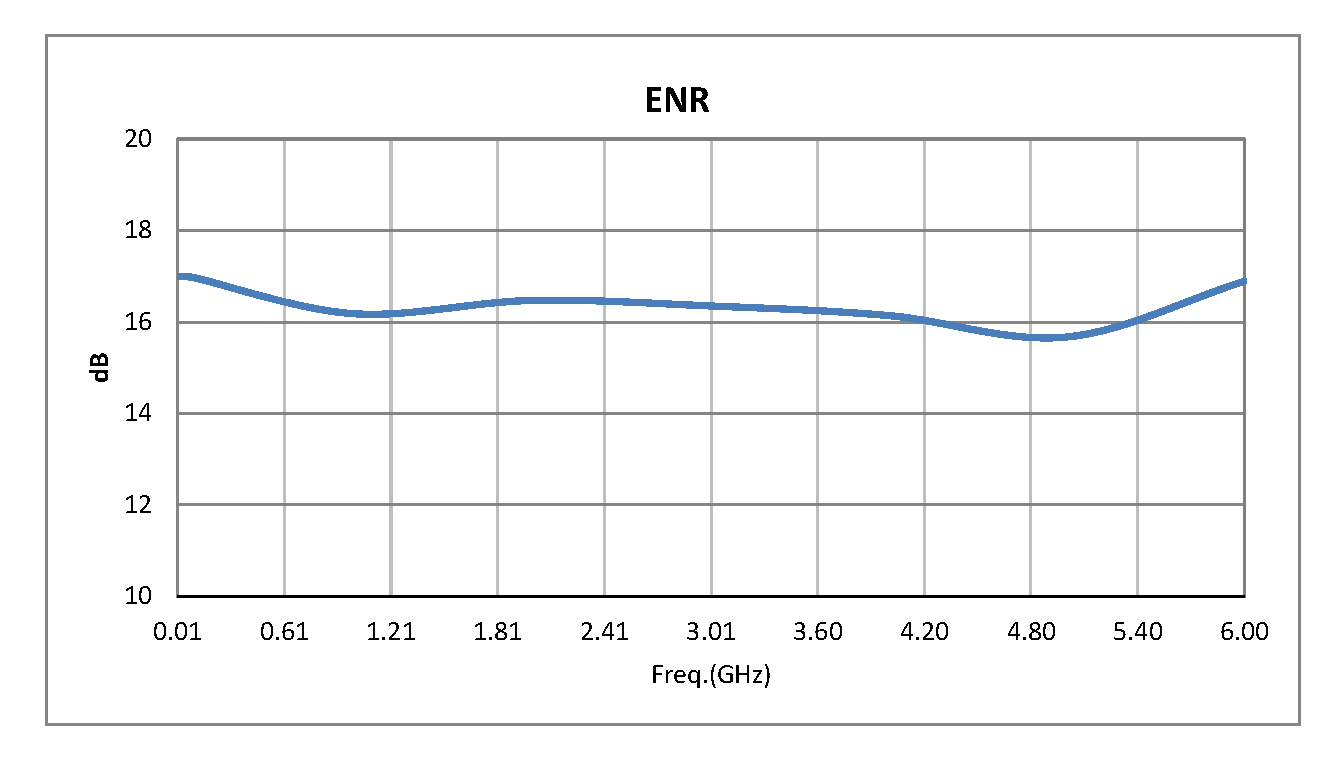

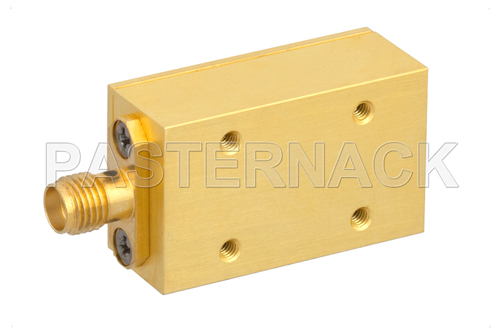

SMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 10 MHz to 6 GHz   PE85N1002

0.01 -6

15

± 2

< 0.01 dB/°C
< 0.1 dB/%V

1 GHz Steps

+28

DC Pin

SMA Female
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 10 MHz to 6 GHz
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 10 MHz to 6 GHz
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 10 MHz to 6 GHz

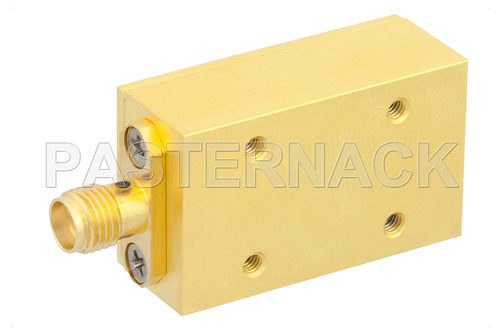

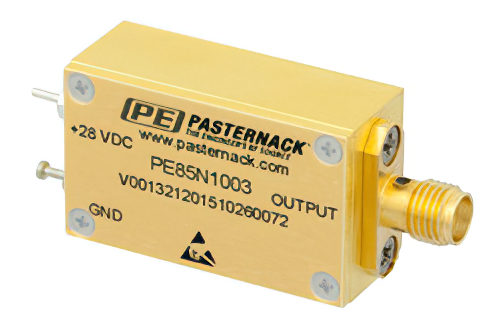

SMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 26 dB From 10 MHz to 6 GHz   PE85N1003

0.01 -6

26

± 2

< 0.01 dB/°C
< 0.1 dB/%V

1 GHz Steps

+28

DC Pin

SMA Female
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 26 dB From 10 MHz to 6 GHz
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 26 dB From 10 MHz to 6 GHz
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 26 dB From 10 MHz to 6 GHz

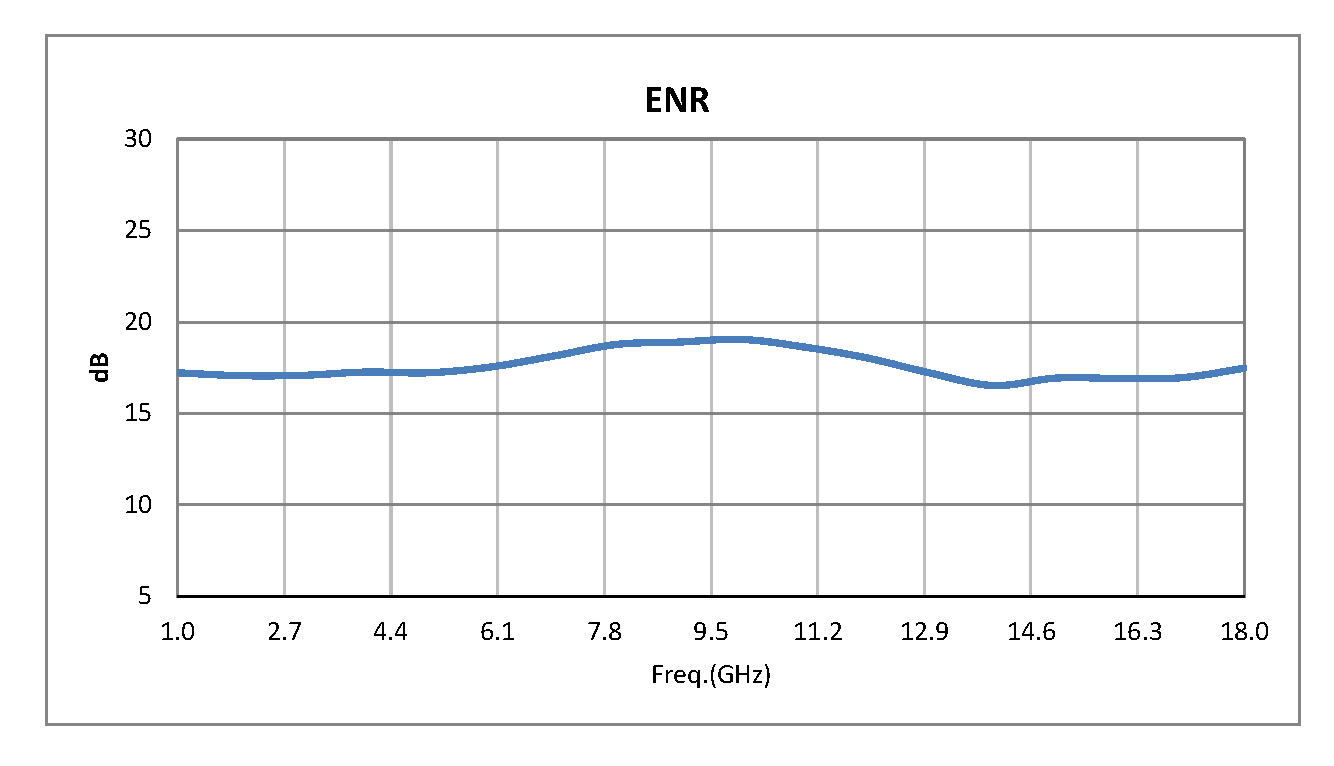

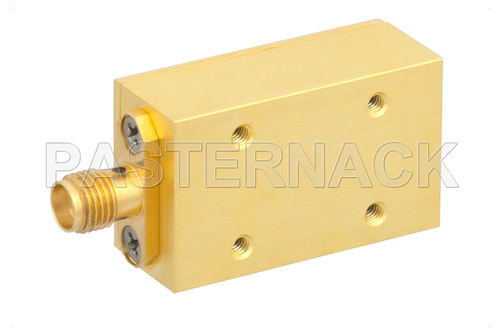

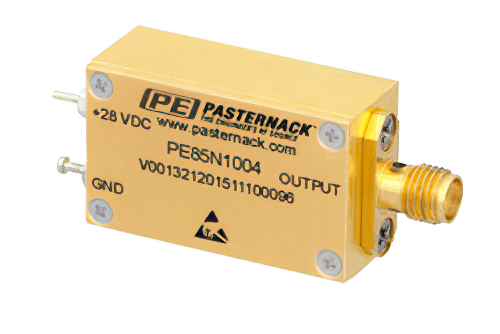

SMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 1 GHz to 18 GHz   PE85N1004

1 - 18

15

± 2

< 0.01 dB/°C
< 0.1 dB/%V

1 GHz Steps

+28

DC Pin

SMA Female
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 1 GHz to 18 GHz
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 1 GHz to 18 GHz
  • descrSMA Broadband Calibrated Noise Source With A Noise Output ENR Of 15 dB From 1 GHz to 18 GHz

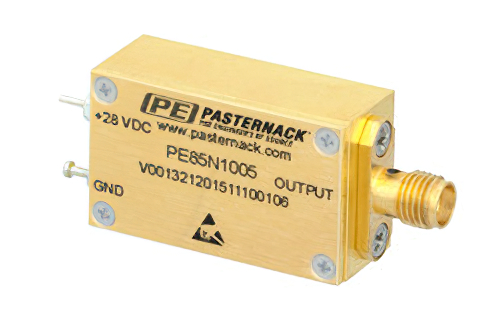

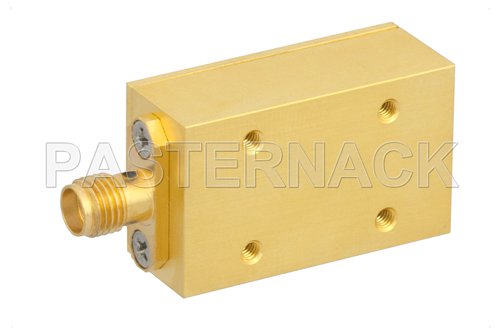

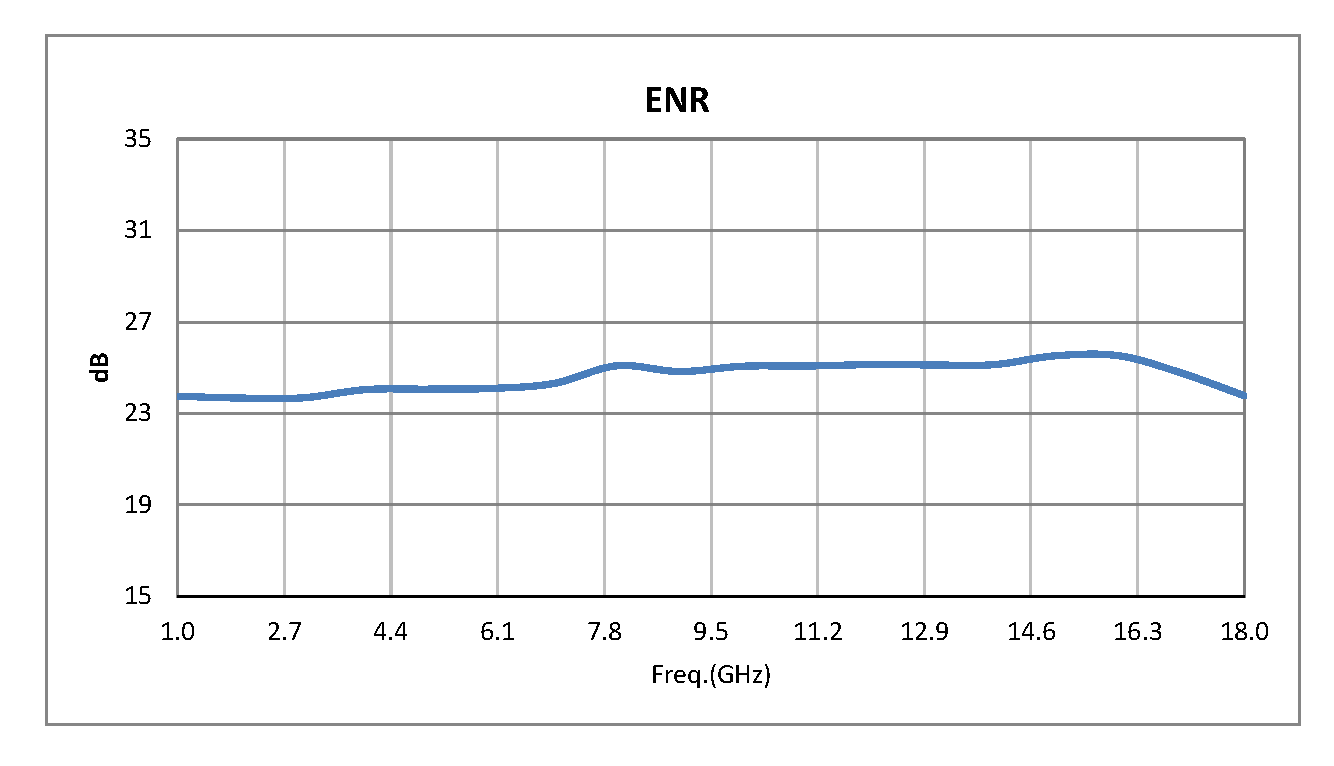

SMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 23 dB From 1 GHz to 18 GHz   PE85N1005

1 - 18

23

± 2

< 0.01 dB/°C
< 0.1 dB/%V

1 GHz Steps

+28

DC Pin

SMA Female
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 23 dB From 1 GHz to 18 GHz
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 23 dB From 1 GHz to 18 GHz
  • descrSMA Broadband Calibrated Noise Source With A High Noise Output ENR Of 23 dB From 1 GHz to 18 GHz
