Gas Tube Design RF Surge Protectors
- Frequency range from DC to 7 GHz
- Proprietary gas discharge tube surge protection design
- 0.1dB typ. Insertion Loss
- VSWR as low as 1.1:1
- IP67 rated models available
- Flexible bulkhead models available
Gas Tube Design RF Surge Protector series
are in stock and ship same-day
▼ Click on the links below for more details
Part No.
& Additional
Views
Frequency
Band
Max
Power
(W)
Max Surge
Current
(kA)
VSWR
DC
Handling
Connector
Series
(Input)
Connector
Series
(Output)
 |

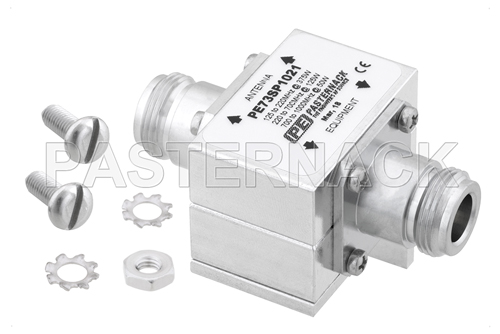

PE73SP1021 | 125 - 1000 MHz |
375 |
20 |
1.1:1 |
DC Block |
N Female |
N Female |
||
 |

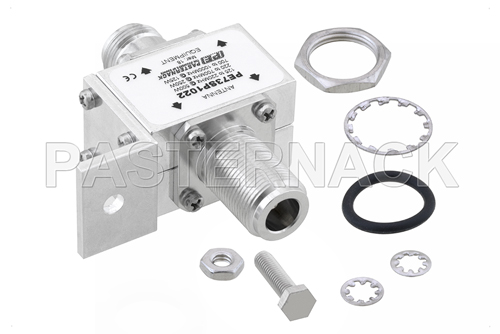

PE73SP1022 | 125 - 1000 MHz |
500 |
20 |
1.1:1 |
DC Block |
N Female |
N Female |
||
 |

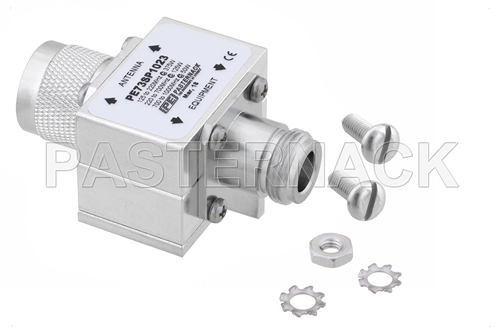

PE73SP1023 | 125 - 1000 MHz |
375 |
20 |
1.1:1 |
DC Block |
N Male |
N Female |
||
 |

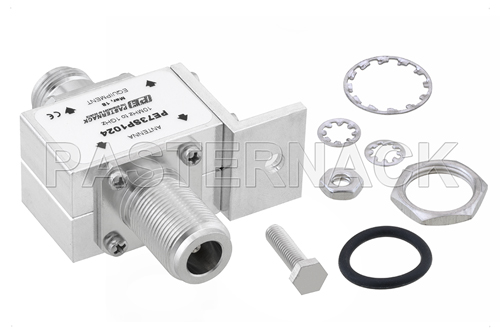

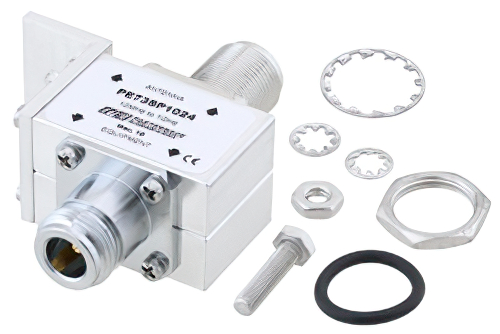

PE73SP1024 | 10 - 1000 MHz |
1500 |
20 |
1.1:1 |
DC Block |
N Female |
N Female |
||
 |

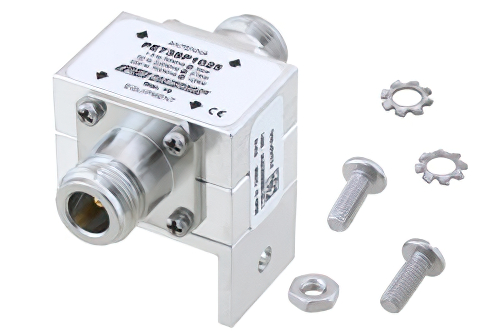

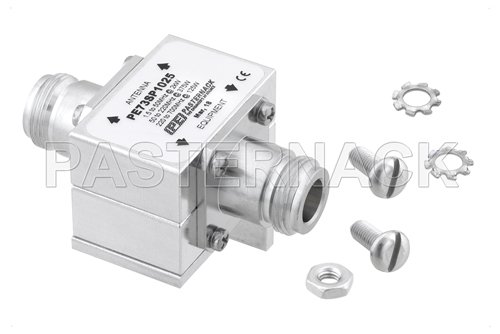

PE73SP1025 | 1.5 - 700 MHz |
2000 |
50 |
1.1:1 |
DC Block |
N Female |
N Female |
||
 |

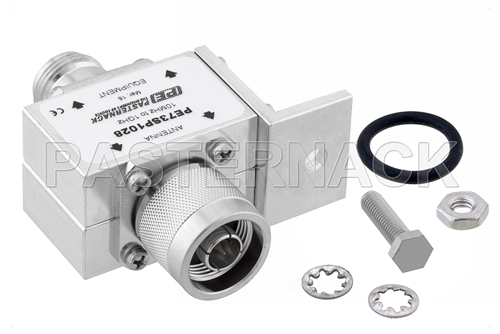

PE73SP1028 | 125 - 1000 MHz |
375 |
20 |
1.1:1 |
DC Block |
N Male |
N Female |
||
 |

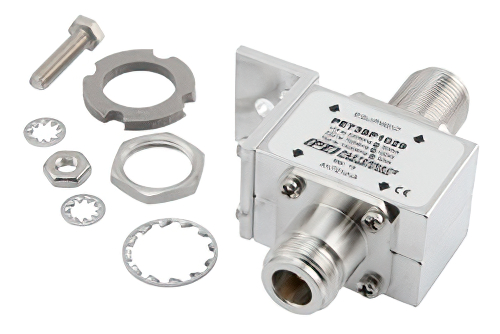

PE73SP1029 | 125 - 1000 MHz |
200 |
50 |
1.1:1 |
DC Block |
N Female |
N Female |
||
 |

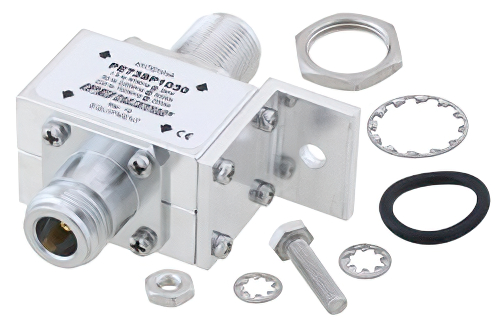

PE73SP1030 | 1.5 - 700 MHz |
3000 |
20 |
1.1:1 |
DC Block |
N Female |
N Female |
||
 |
PE73SP1031 | 125 - 1000 MHz |
500 |
50 |
1.1:1 |
DC Block |
N Male |
N Female |
||
 |

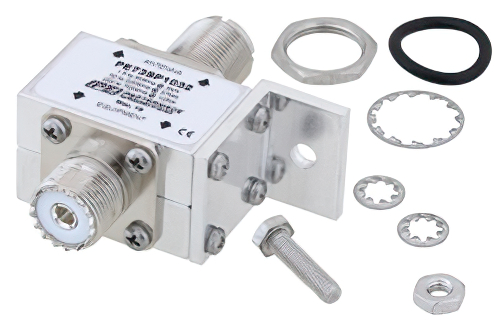

PE73SP1032 | 1.5 - 700 MHz |
2000 |
50 |
1.2:1 |
DC Block |
UHF Female |
UHF Female |
||
 |
PE73SP1038 | DC - 7 GHz |
90 |
20 |
1.4:1 |
DC Pass |
N Female |
N Female |
||
 |

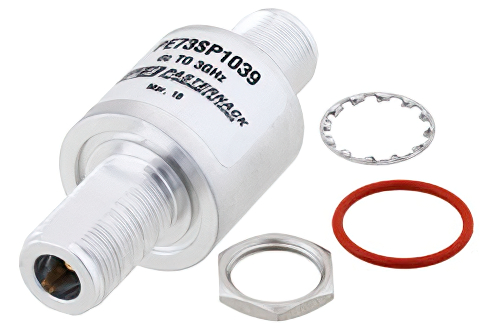

PE73SP1039 | DC - 3 GHz |
40 |
40 |
1.2:1 |
DC Pass |
N Female |
N Female |
||
 |
PE73SP1040 | DC - 2.4 GHz |
50 |
18 |
1.28:1 |
DC Pass |
N Female |
N Female |
||
 |
PE73SP1041 | DC - 7 GHz |
90 |
20 |
1.4:1 |
DC Pass |
N Female |
N Male |
||
Select a category below for more RF Surge Protectors
Surge Filter | Hybrid | Gas Tube | main page
Gas Tube Design RF Surge Protector series from Pasternack
Pasternack offers a broad selection of RF coax surge protectors that utilize a proprietary gas discharge tube design to protect your valuable communications equipment.
These surge protectors support a frequency range from DC to 7 GHz, 0.1dB typ. Insertion Loss, VSWR as low as 1.1:1 and some models feature an IP67 rating and bulkhead models are also available.
These gas tube coax surge protectors are in stock and available for immediate shipment.
