Embedded GPS Antennas
  • Operating frequency range up to 67GHz
  • Coaxial designs with 1.85mm, 2.4mm, 3.5mm, SMP and
    Mini-SMP connectors
  • Available in both male/female connectorized configurations
  • Flat RF response and performance
  • Excellent VSWR performance as low as 1.15:1
High Frequency RF Terminations


Part No.

& Additional

Views

Frequency
Band (GHz)

Max Power
(W)

VSWR
(Max)

Connector
Type

Connector
Gender

With
Chain

ECCN

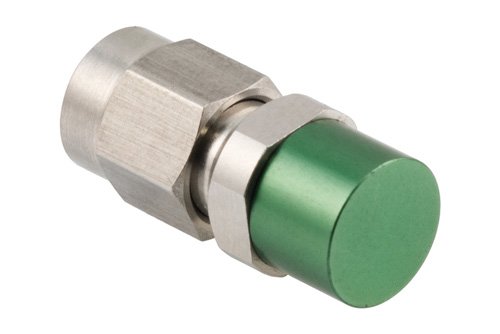

1 Watt RF Load Up to 67 GHz with 1.85mm Male   PE6TR1100

DC to 67

1

1.6:1

1.85mm

Male

EAR99
  • descr1 Watt RF Load Up to 67 GHz with 1.85mm Male
  • descr1 Watt RF Load Up to 67 GHz with 1.85mm Male

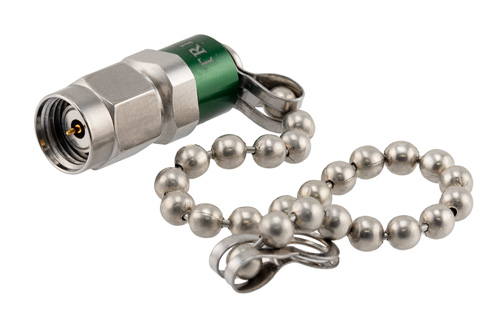

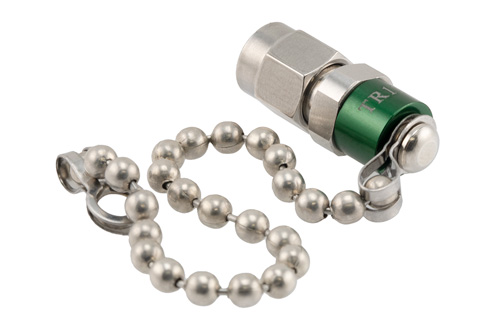

1 Watt RF Load with Chain Up to 67 GHz with 1.85mm Male   PE6TR1101

DC to 67

1

1.6:1

1.85mm

Male

Yes

EAR99
  • descr1 Watt RF Load with Chain Up to 67 GHz with 1.85mm Male
  • descr1 Watt RF Load with Chain Up to 67 GHz with 1.85mm Male

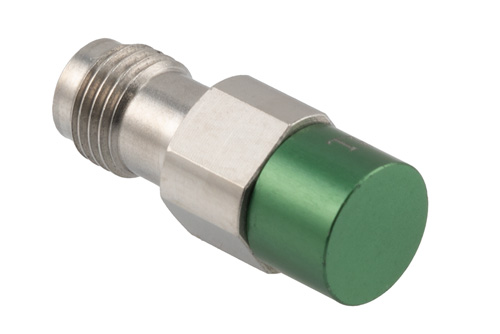

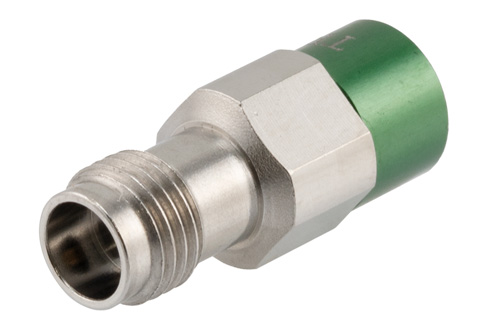

1 Watt RF Load Up to 67 GHz with 1.85mm Female   PE6TR1102

DC to 67

1

1.6:1

1.85mm

Female

EAR99
  • descr1 Watt RF Load Up to 67 GHz with 1.85mm Female
  • descr1 Watt RF Load Up to 67 GHz with 1.85mm Female

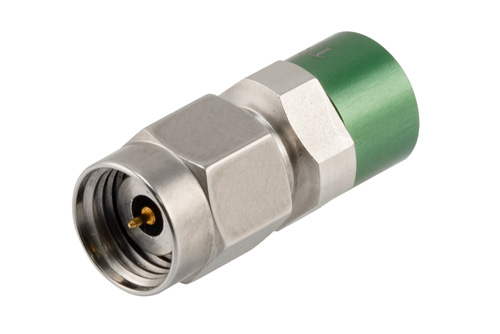

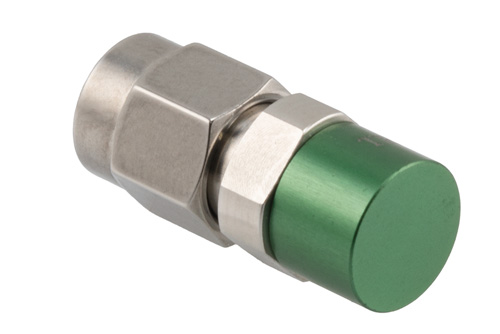

1 Watt RF Load Up to 50 GHz with 2.4mm Male   PE6TR1103

DC to 50

1

1.2:1

2.4mm

Male

EAR99
  • descr1 Watt RF Load Up to 50 GHz with 2.4mm Male
  • descr1 Watt RF Load Up to 50 GHz with 2.4mm Male

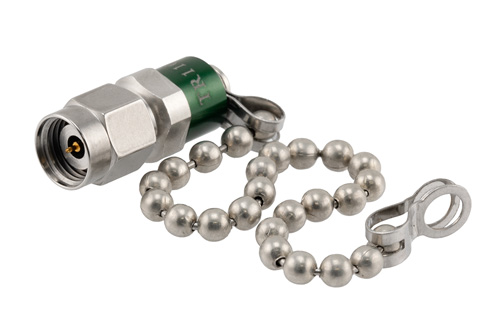

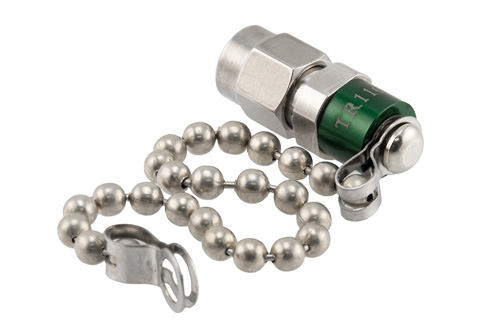

1 Watt RF Load with Chain Up to 50 GHz with 2.4mm Male   PE6TR1104

DC to 50

1

1.2:1

2.4mm

Male

Yes

EAR99
  • descr1 Watt RF Load with Chain Up to 50 GHz with 2.4mm Male
  • descr1 Watt RF Load with Chain Up to 50 GHz with 2.4mm Male

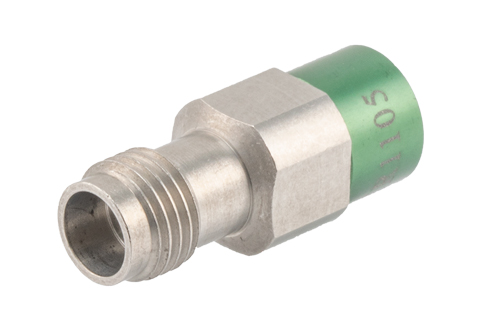

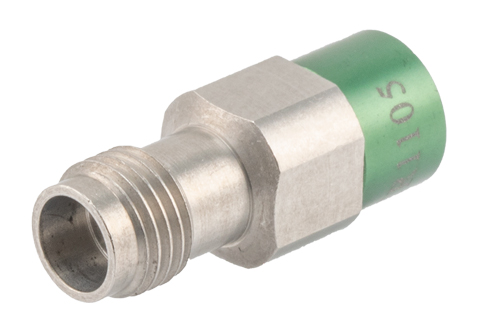

1 Watt RF Load Up to 50 GHz with 2.4mm Female   PE6TR1105

DC to 50

1

1.2:1

2.4mm

Female

EAR99
  • descr1 Watt RF Load Up to 50 GHz with 2.4mm Female
  • descr1 Watt RF Load Up to 50 GHz with 2.4mm Female

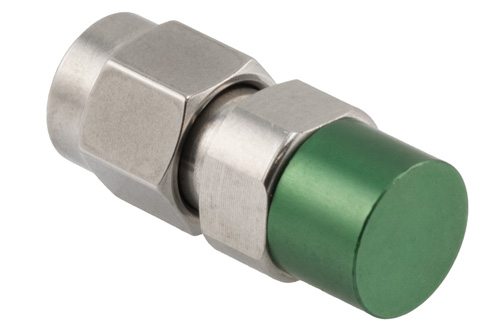

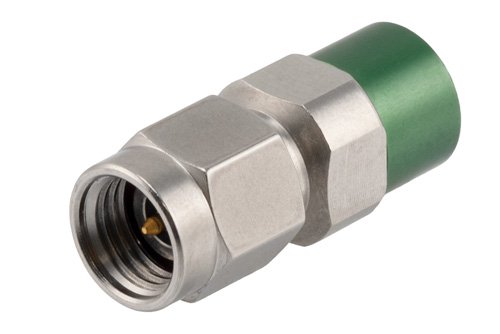

1 Watt RF Load Up to 40 GHz with 2.92mm Male   PE6TR1106

DC to 40

1

1.15:1

2.92mm

Male

EAR99
  • descr1 Watt RF Load Up to 40 GHz with 2.92mm Male
  • descr1 Watt RF Load Up to 40 GHz with 2.92mm Male

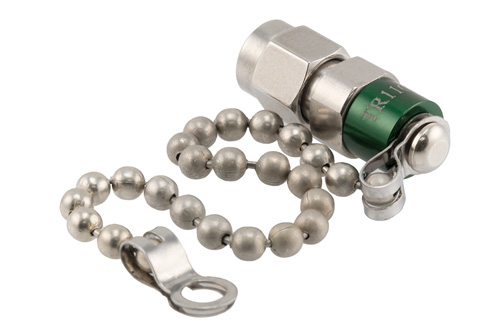

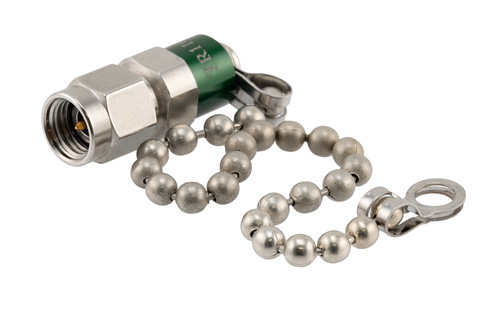

1 Watt RF Load with Chain Up to 40 GHz with 2.92mm Male   PE6TR1107

DC to 40

1

1.15:1

2.92mm

Male

Yes

EAR99
  • descr1 Watt RF Load with Chain Up to 40 GHz with 2.92mm Male
  • descr1 Watt RF Load with Chain Up to 40 GHz with 2.92mm Male

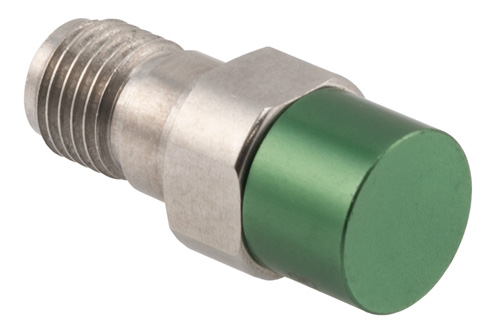

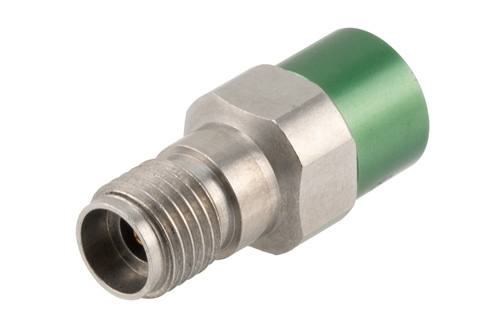

1 Watt RF Load Up to 40 GHz with 2.92mm Female   PE6TR1108

DC to 40

1

1.15:1

2.92mm

Female

EAR99
  • descr1 Watt RF Load Up to 40 GHz with 2.92mm Female
  • descr1 Watt RF Load Up to 40 GHz with 2.92mm Female

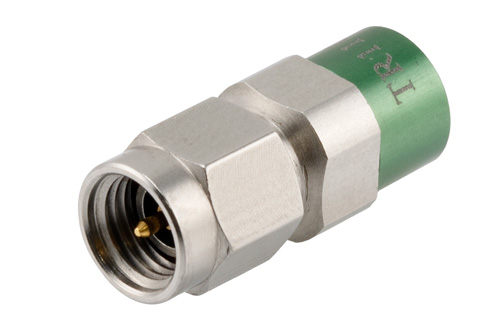

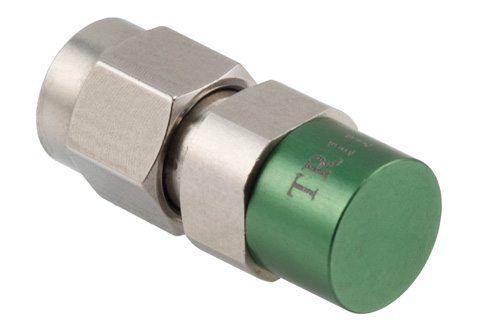

1 Watt RF Load Up to 34.5 GHz with 3.5mm Male VSWR 1.15   PE6TR1109

DC to 34.5

1

1.15:1

3.5mm

Male

EAR99
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Male VSWR 1.15
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Male VSWR 1.15

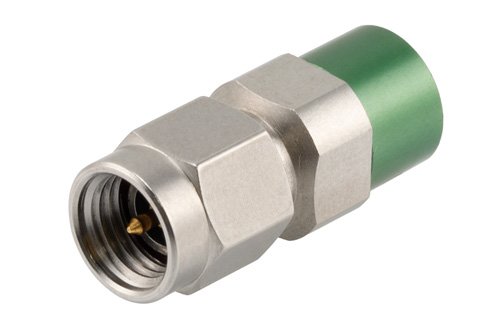

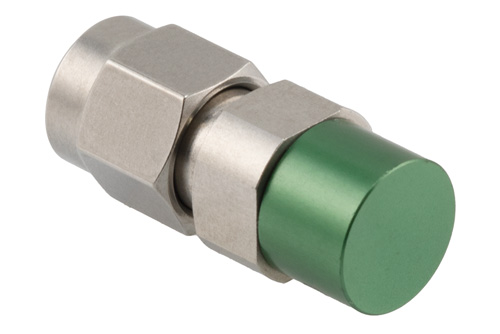

1 Watt RF Load Up to 34.5 GHz with 3.5mm Male VSWR 1.25   PE6TR1110

DC to 34.5

1

1.25:1

3.5mm

Male

EAR99
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Male VSWR 1.25
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Male VSWR 1.25

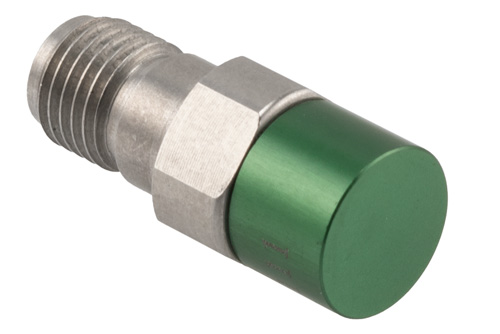

1 Watt RF Load Up to 34.5 GHz with 3.5mm Female VSWR 1.15   PE6TR1111

DC to 34.5

1

1.15:1

3.5mm

Female

EAR99
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Female VSWR 1.15
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Female VSWR 1.15

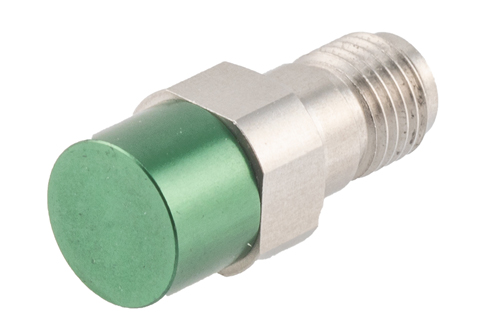

1 Watt RF Load Up to 34.5 GHz with 3.5mm Female VSWR 1.25   PE6TR1112

DC to 34.5

1

1.25:1

3.5mm

Female

EAR99
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Female VSWR 1.25
  • descr1 Watt RF Load Up to 34.5 GHz with 3.5mm Female VSWR 1.25

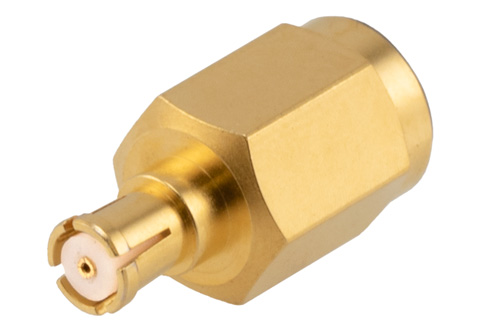

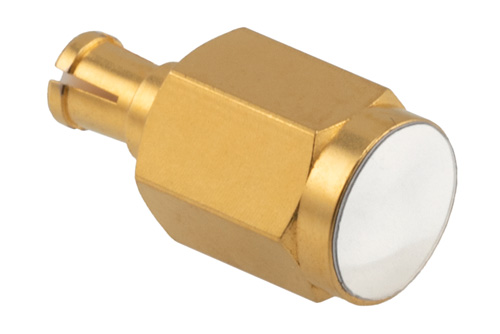

1 Watt RF Load Up to 18 GHz with SMP Female Push-on   PE6TR1113

DC to 18

1

1.15:1

SMP

Female

EAR99
  • descr1 Watt RF Load Up to 18 GHz with SMP Female Push-on
  • descr1 Watt RF Load Up to 18 GHz with SMP Female Push-on

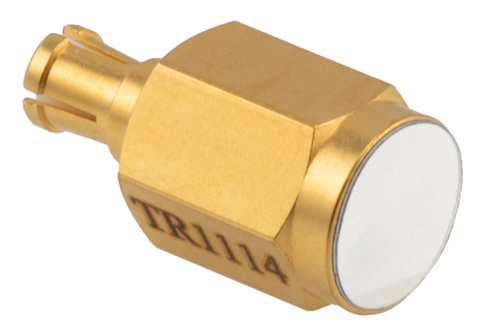

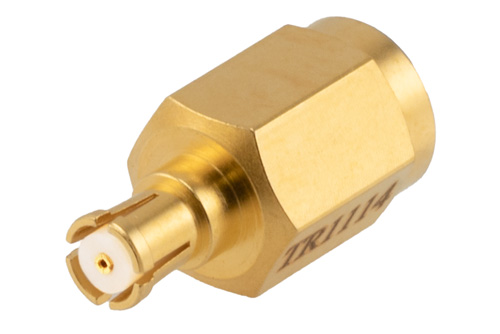

1 Watt RF Load Up to 27 GHz with SMP Female Push-On   PE6TR1114

DC to 27

1

1.2:1

SMP

Female

EAR99
  • descr1 Watt RF Load Up to 27 GHz with SMP Female Push-On
  • descr1 Watt RF Load Up to 27 GHz with SMP Female Push-On

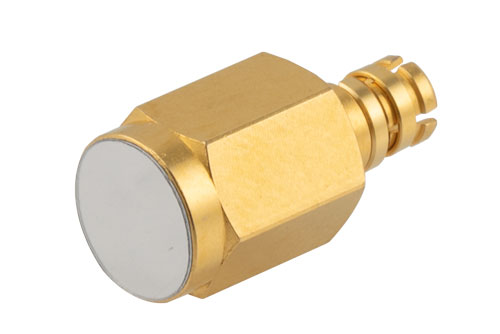

1 Watt RF Load Up to 40 GHz with SMP Female Push-On VSWR 1.20   PE6TR1115

DC to 40

1

1.2:1

SMP

Female

EAR99
  • descr1 Watt RF Load Up to 40 GHz with SMP Female Push-On VSWR 1.20
  • descr1 Watt RF Load Up to 40 GHz with SMP Female Push-On VSWR 1.20

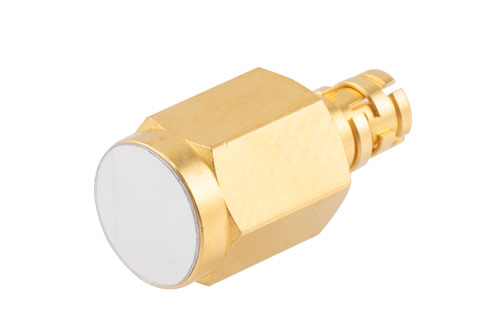

1 Watt RF Load Up to 40 GHz with SMP Female Push-On VSWR 1.30   PE6TR1116

DC to 40

1

1.3:1

SMP

Female

EAR99
  • descr1 Watt RF Load Up to 40 GHz with SMP Female Push-On VSWR 1.30
  • descr1 Watt RF Load Up to 40 GHz with SMP Female Push-On VSWR 1.30

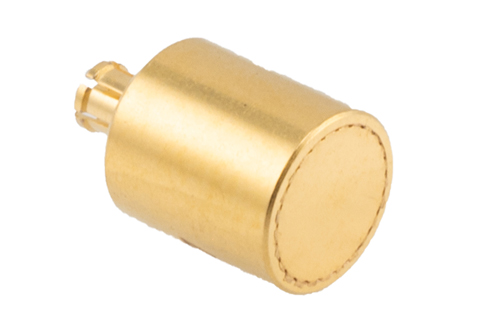

1 Watt RF Load Up to 18 GHz with Mini SMP Female Push-On   PE6TR1117

DC to 18

1

1.15:1

Mini SMP

Female

EAR99
  • descr1 Watt RF Load Up to 18 GHz with Mini SMP Female Push-On
  • descr1 Watt RF Load Up to 18 GHz with Mini SMP Female Push-On

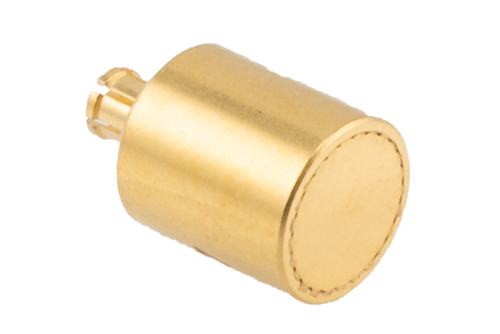

1 Watt RF Load Up to 27 GHz with Mini SMP Female Push-On   PE6TR1118

DC to 27

1

1.2:1

Mini SMP

Female

EAR99
  • descr1 Watt RF Load Up to 27 GHz with Mini SMP Female Push-On
  • descr1 Watt RF Load Up to 27 GHz with Mini SMP Female Push-On

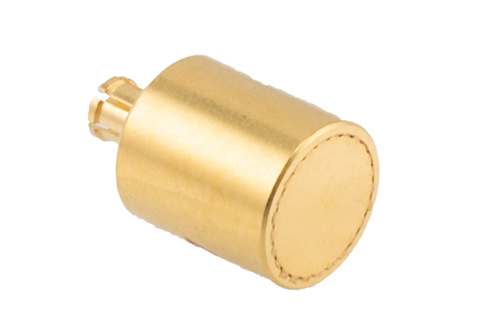

1 Watt RF Load Up to 40 GHz with Mini SMP Female Push-On   PE6TR1119

DC to 40

1

1.2:1

Mini SMP

Female

EAR99
  • descr1 Watt RF Load Up to 40 GHz with Mini SMP Female Push-On
  • descr1 Watt RF Load Up to 40 GHz with Mini SMP Female Push-On

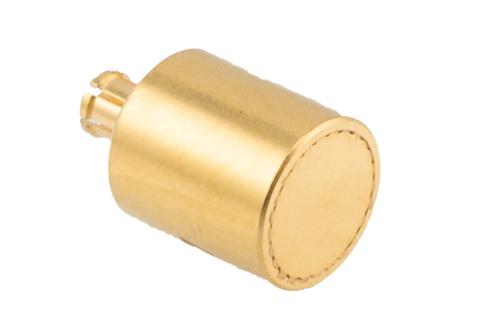

1 Watt RF Load Up to 50 GHz with Mini SMP Female Push-On   PE6TR1120

DC to 50

1

1.4:1

Mini SMP

Female

EAR99
  • descr1 Watt RF Load Up to 50 GHz with Mini SMP Female Push-On
  • descr1 Watt RF Load Up to 50 GHz with Mini SMP Female Push-On

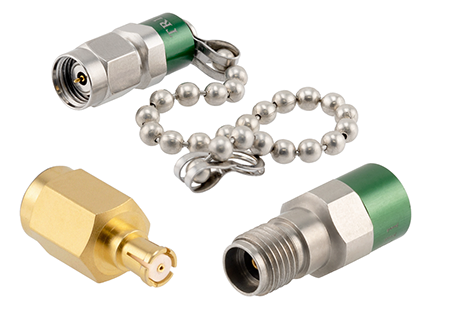

High Frequency RF Terminations from Pasternack

Pasternack’s new high frequency RF terminations consist of 21 models with operating frequency range up to 67GHz. These products are available in 1.85mm, 2.4mm, 3.5mm, SMP and mini-SMP connectorized designs. These RF loads offer excellent VSWR performances over the entire operating frequency range.  Pasternack’s high frequency RF terminations are in-stock and available for same-day shipping.
