- Over 22 Standard Configurations in stock
- Custom Cable Assemblies Shipped Same Day
- Low PIM Cable Assembly < -160 dBc
- 100% Tested with PIM Test Results Marked on Cable
- UL910 Plenum Rated SPP-250-LLPL RF Coaxial Cable
- Lightweight and Extremely Flexible Plenum Rated Coax
- Low Loss Coax Cable Assembly Series with Excellent VSWR
SPP-250-LLPL coax cable assembly series is in stock and ready for same-day shipping!

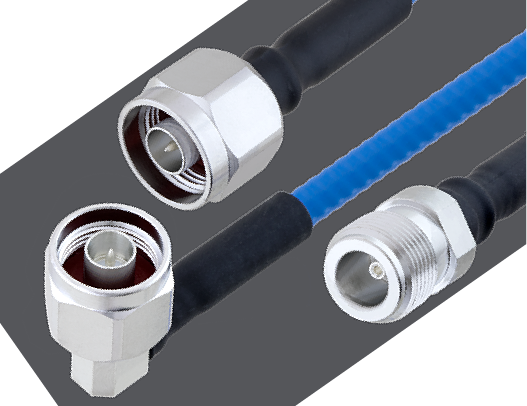

Type N Low PIM Plenum Rated
Cable Assemblies
 |
| Plenum N Male to N Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Female to N Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male Right Angle to N Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male to 4.1/9.5 Mini DIN Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male Right Angle to N Male Right Angle Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum 4.1/9.5 Mini DIN Female to N Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum 4.1/9.5 Mini DIN Male Right Angle to N Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male to QMA Female Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male to QMA Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male to QMA Male Right Angle Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male to SMA Female Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male to SMA Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
 |
| Plenum N Male to SMA Male Right Angle Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum N Male to 4.1/9.5 Mini DIN Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum 4.1/9.5 Mini DIN Female to N Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum 4.1/9.5 Mini DIN Male Right Angle to N Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum N Male to SMA Female Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum N Male to SMA Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum N Male to SMA Male Right Angle Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum N Male to QMA Female Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum N Male to QMA Male Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
|
| Plenum N Male to QMA Male Right Angle Low PIM Cable Using SPP-250-LLPL Coax, LF Solder |
Type N Low PIM Plenum Rated Cable Assemblies from Pasternack
Pasternack’s Low-PIM Type N cables feature a maximum PIM level of -160 dBc and are made with UL910 plenum-rated SPP-250-LLPL cable. Type N connector options include male, female, and male right angle versions. In-series and between series connector combinations are available and 13 different standard configurations are available for same day shipping.
The PIM levels of these Type N cables have been fully tested and have the individual test results marked on each cable. These Type N Low-PIM cables boast a maximum operating frequency of 6 GHz and a maximum VSWR of 1.25:1 up to 2 GHz and 1.35:1 up to 6 GHz. Pasternack’s Low-PIM cables are lightweight, flexible and have an operating temperature range of -55°C to +125°C.
Typical applications for these Type N Low-PIM cables assemblies include distributed antenna systems (DAS), PIM testing applications, multi-carrier communication systems and indoor wireless systems.
These Low-PIM cables are offered in custom lengths and connector combinations with same day shipping!
