  • All models in-stock and priced less than $500 per unit
  • Outstanding performance over wide octave bands up to 3 GHz
  • 50 ohm hybrid circuits enclosed in metal packages do not require external matching components
  • Environmentally sealed metal enclosures with SMA connectors
  • Operational temperature range: -40°C to +85°C
  • Exceptional noise figures as low as 0.5 dB
  • High IP3 linearity up to +37 dBm
  • All designs use a single positive voltage supply with internal voltage regulation

All in stock and ready for same-day shipping!

Low Noise

Part No.

Frequency
Band (GHz)

Gain
(dB)

Gain Variation

+/-(dB)

P1dB

(dBm)

NF

(dB)

IP3

(dBm)

DC Power

(V/mA)

Mechanical Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Price
Qty 1

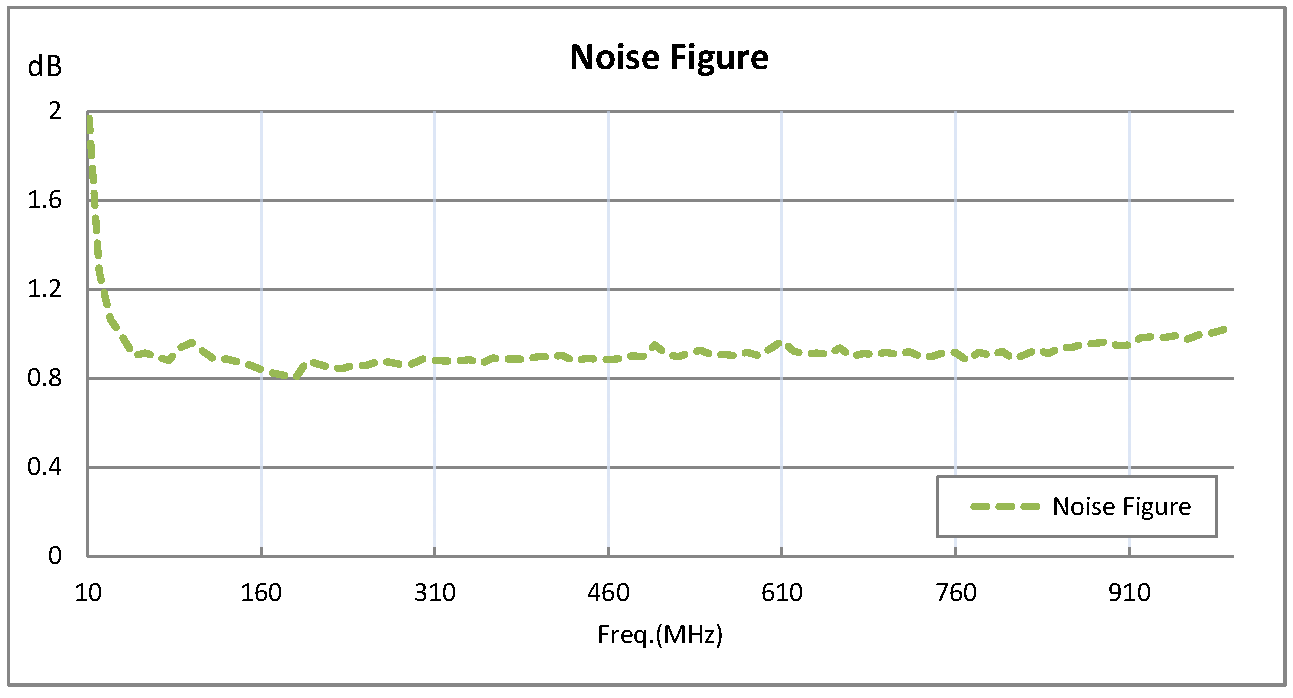

1 dB NF, 17 dBm P1dB, 10 MHz to 1,000 MHz, Low Noise Amplifier, 30 dB Gain, SMA PE15A1011

0.010 - 1

30

0.7

17

1

12/110

1.5 x 0.85 x 0.375

SMA

EAR99

$361.76

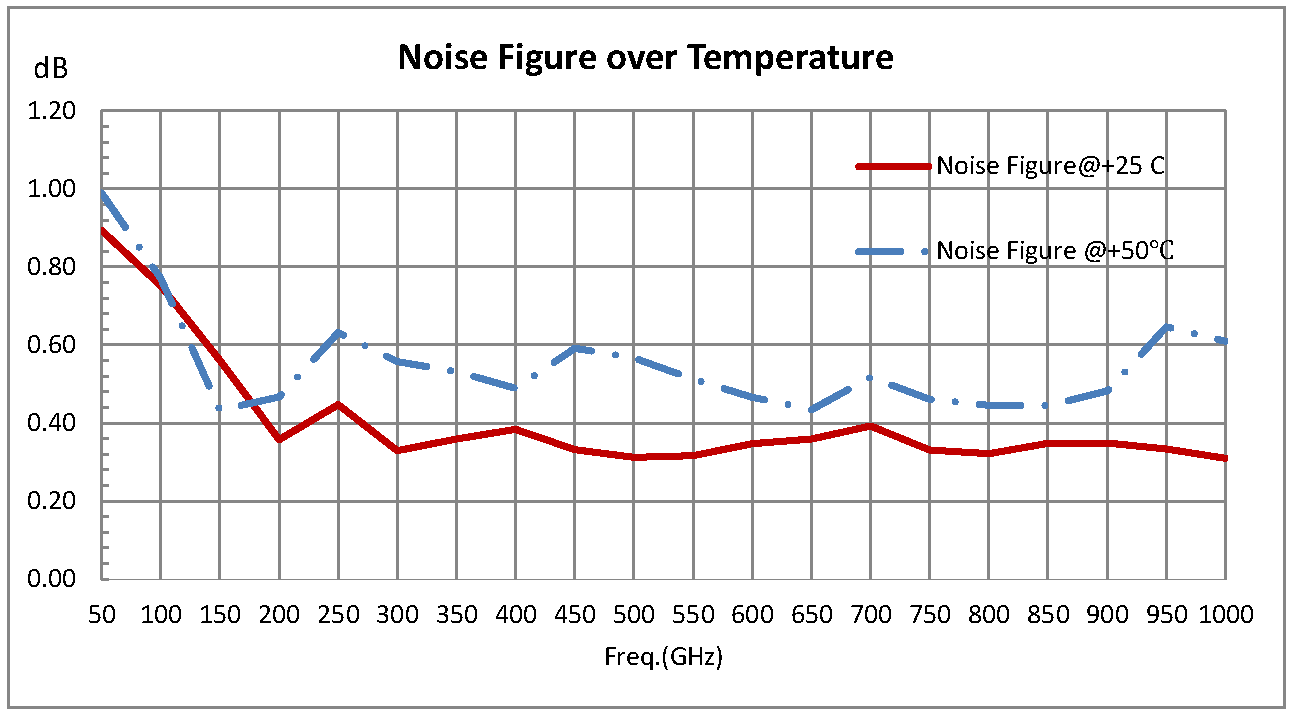

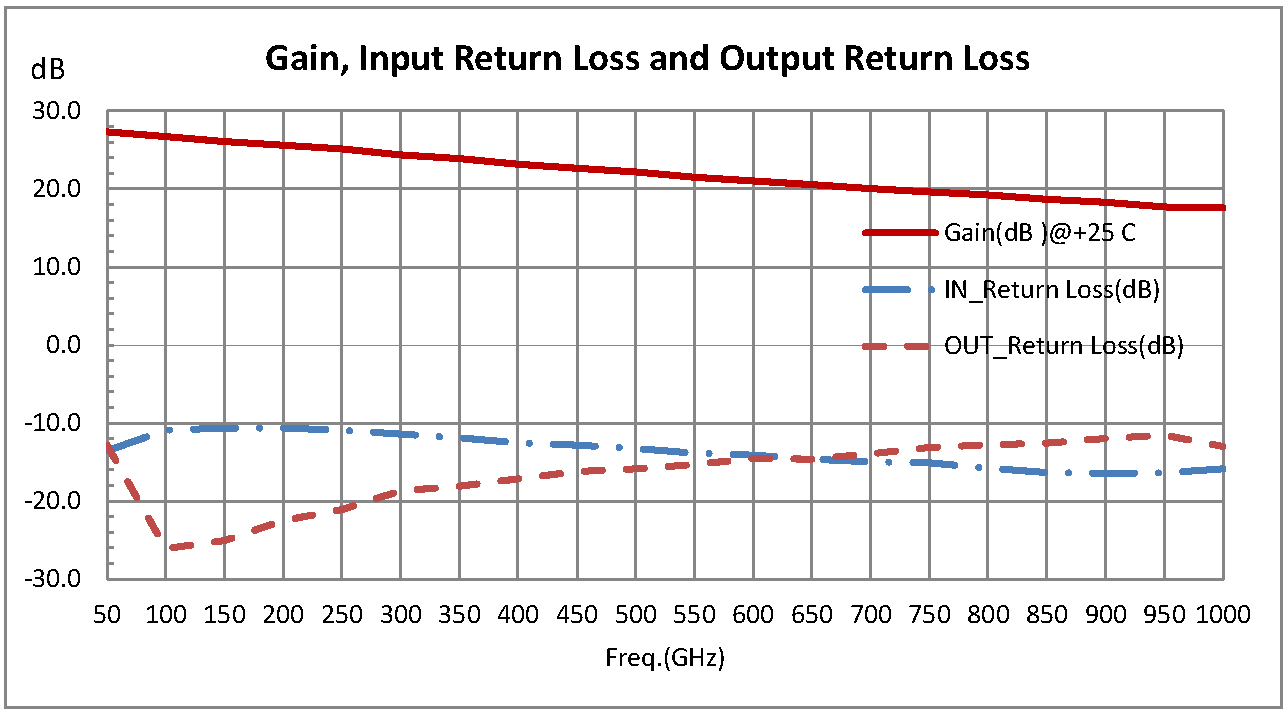

18 dBm P1dB, 50 MHz to 1,000 MHz, Low Noise Amplifier, SMA PE15A1014

0.05 - 1

22

19

0.5

35

12/90

1.38 x 1.2 x 0.5

SMA

EAR99

$244.12

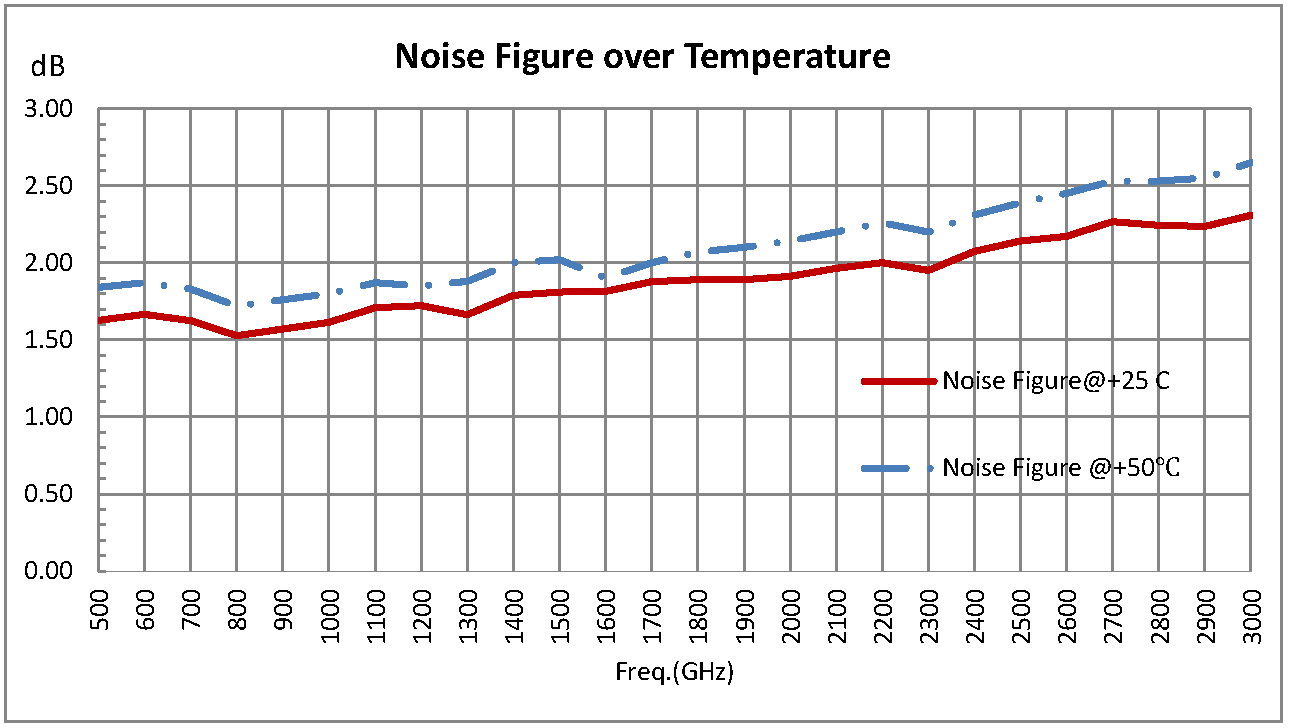

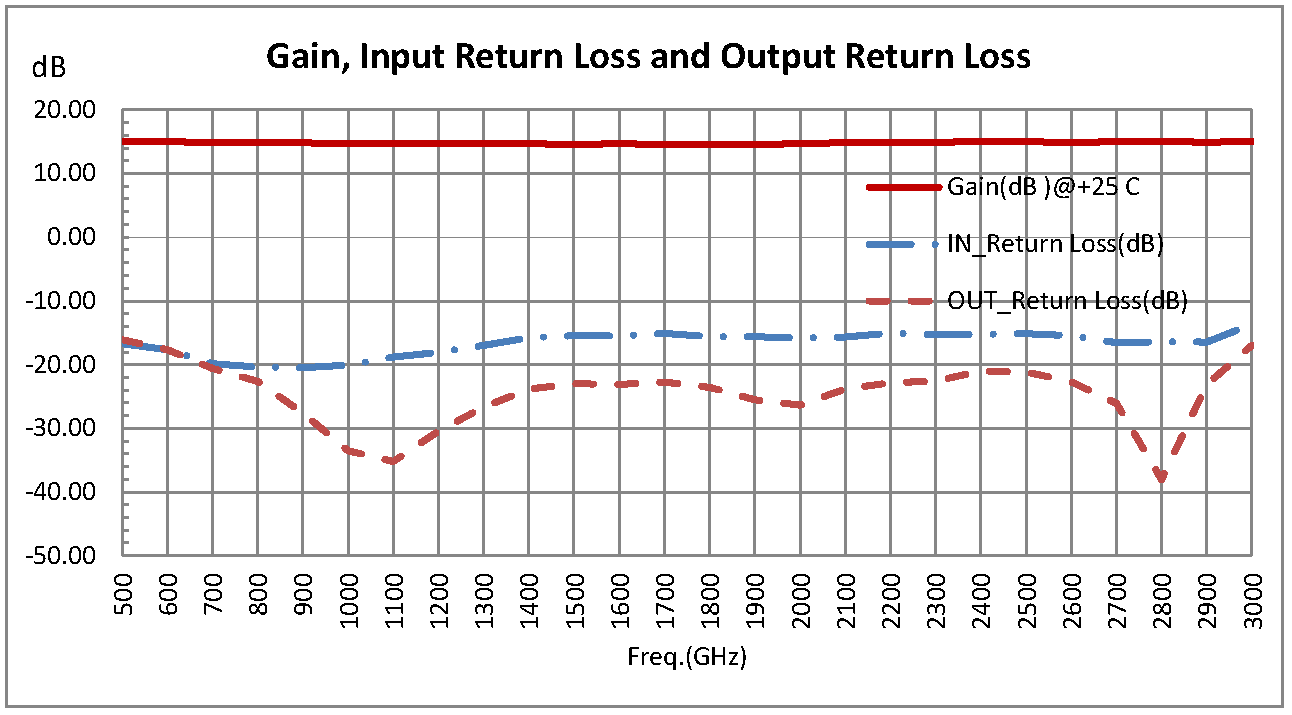

20 dBm P1dB, 500 MHz to 3 GHz, Low Noise Amplifier, 14.5 dB Gain, SMA PE15A1017

0.5 to 3

14.5

0.4

20

2

35

12/90

1.38 x 1.18 x 0.50

SMA

EAR99

$278.00

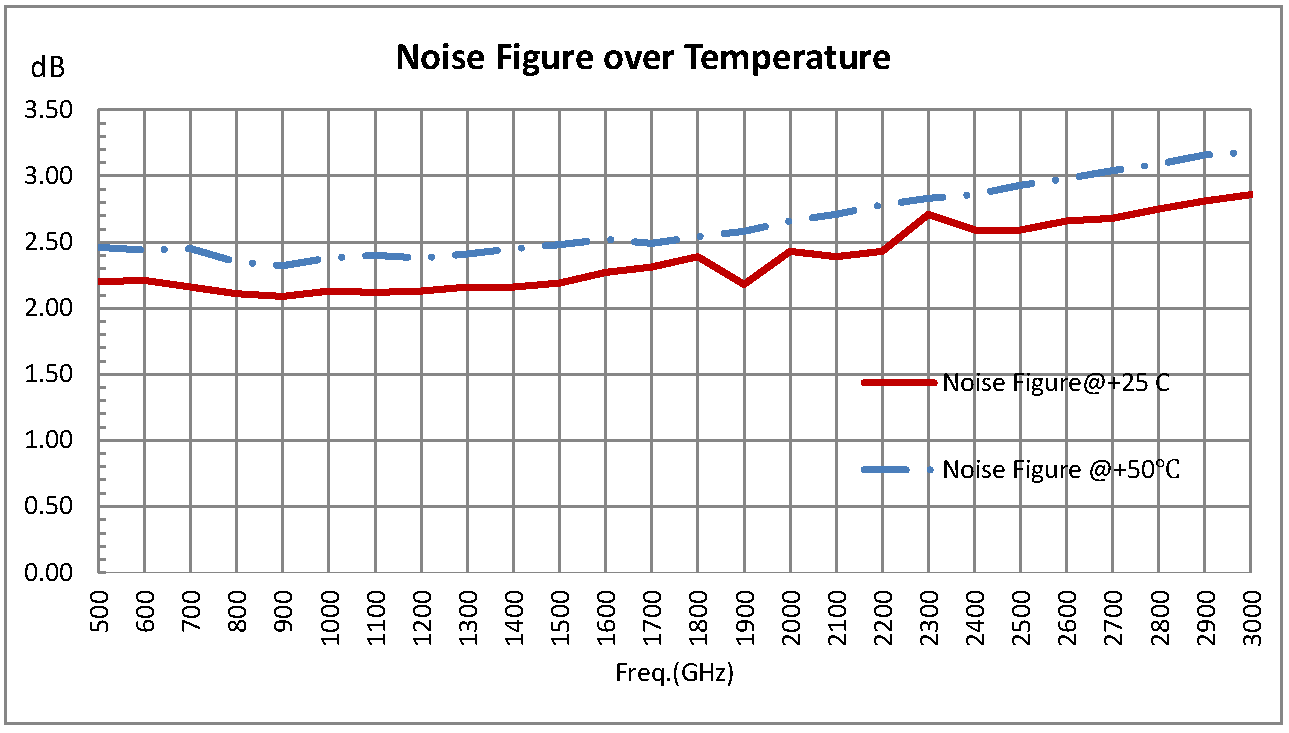

20 dBm P1dB, 500 MHz to 3 GHz, Low Noise Amplifier, 29 dB Gain, SMA PE15A1018

0.5 to 3

29

1

20

2.6

35

12/190

1.38 x 1.18 x 0.50

SMA

EAR99

$367.00

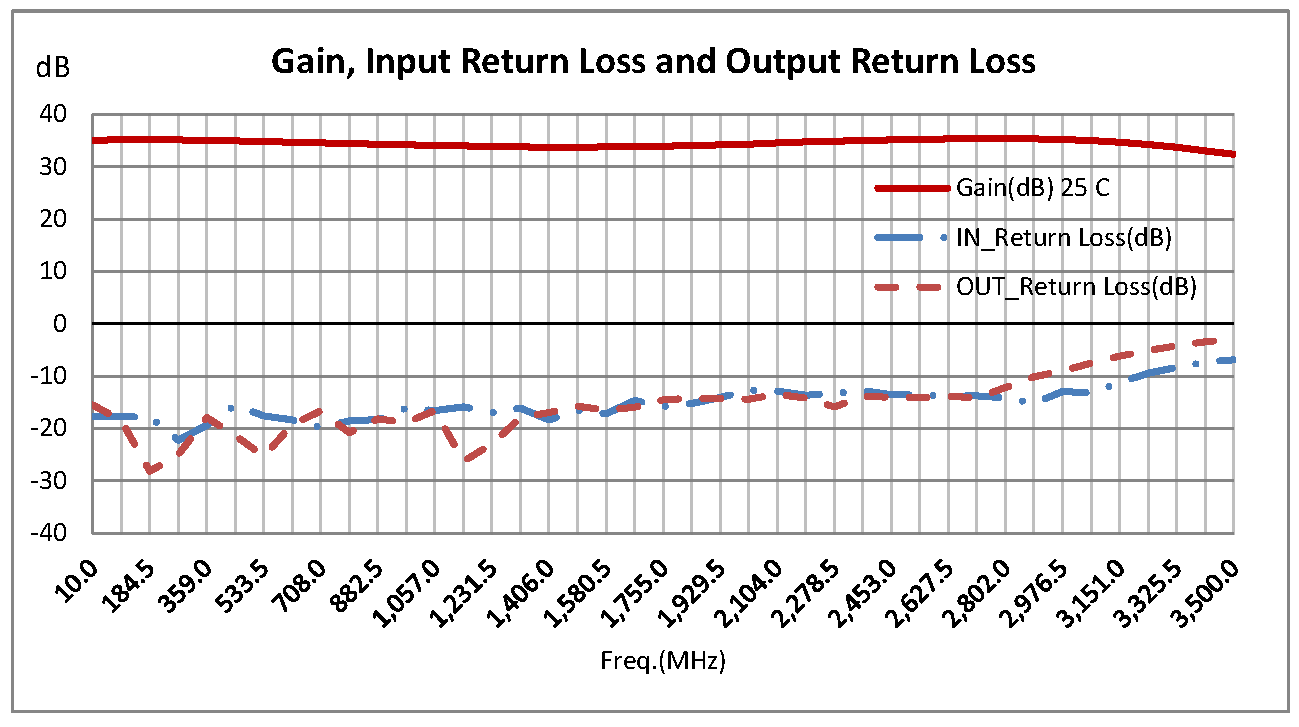

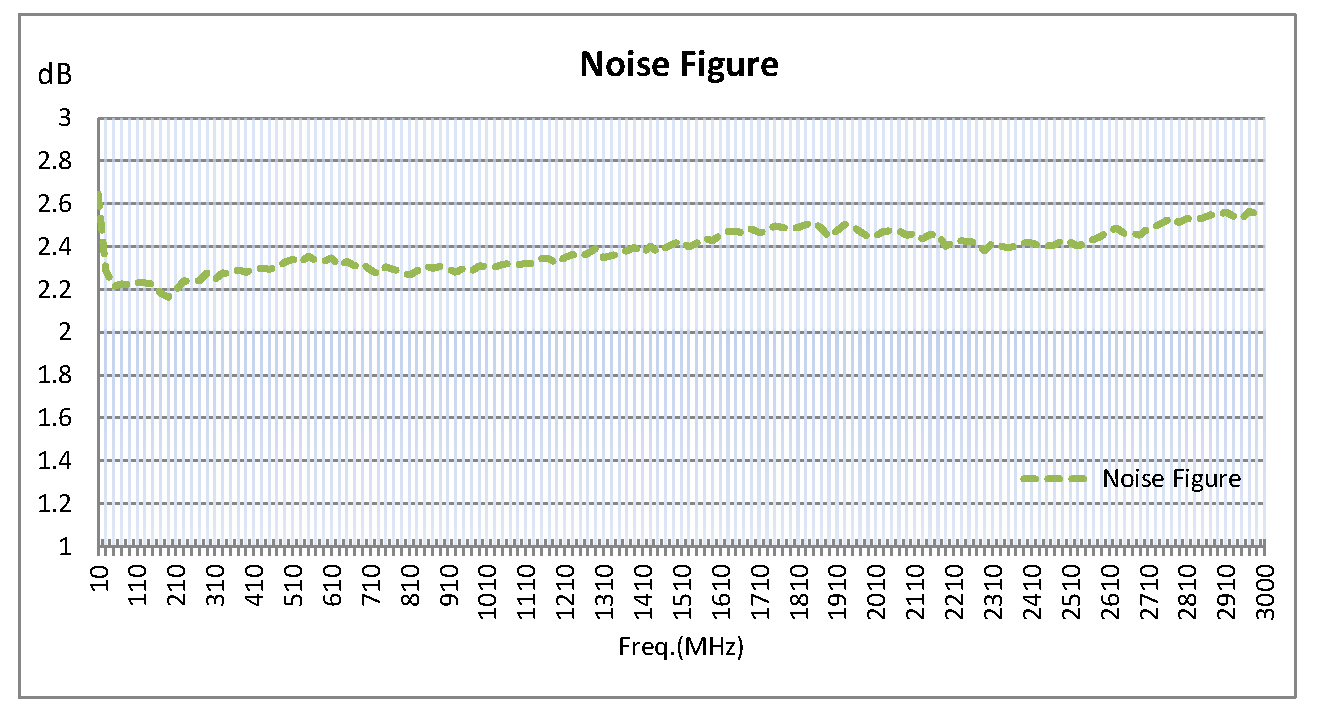

2.5 dB NF, 16 dBm P1dB, 0.009 MHz to 3 GHz, Low Noise Amplifier, 32 dB Gain, SMA PE15A1007

9 kHz - 3

32

1.25

16

2.5

12/110

1.5 x 0.85 x 0.375

SMA

EAR99

$363.24

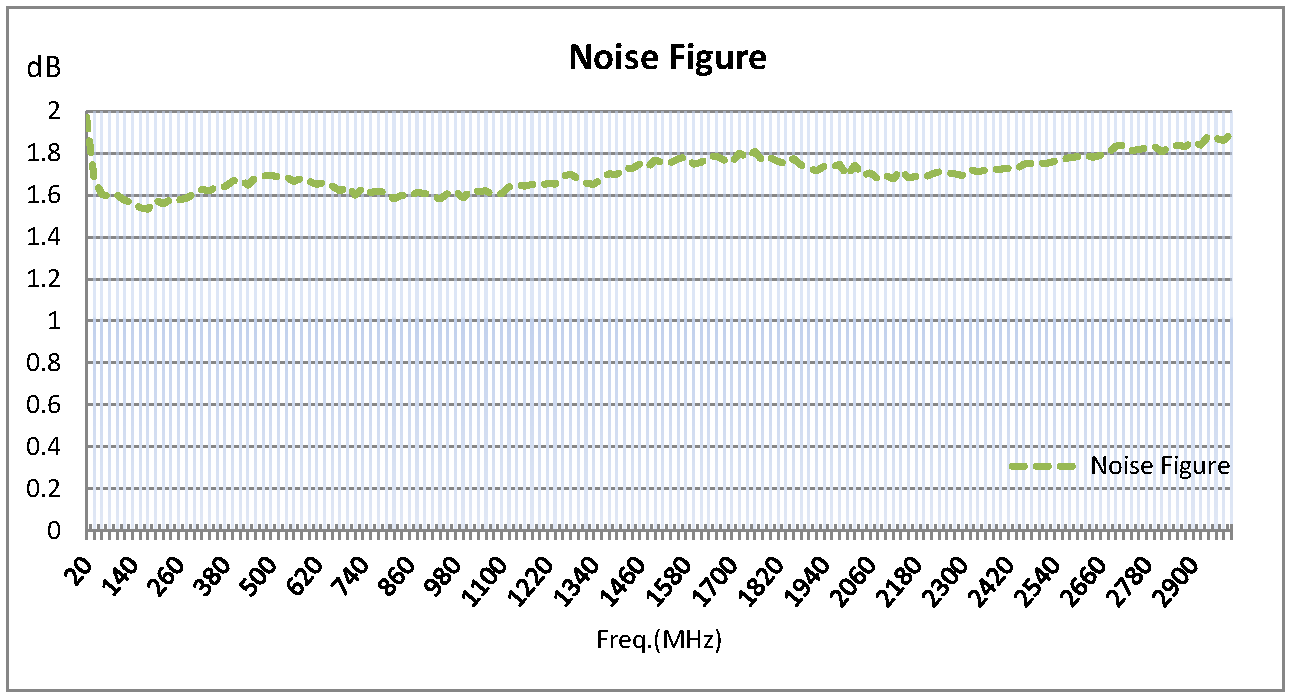

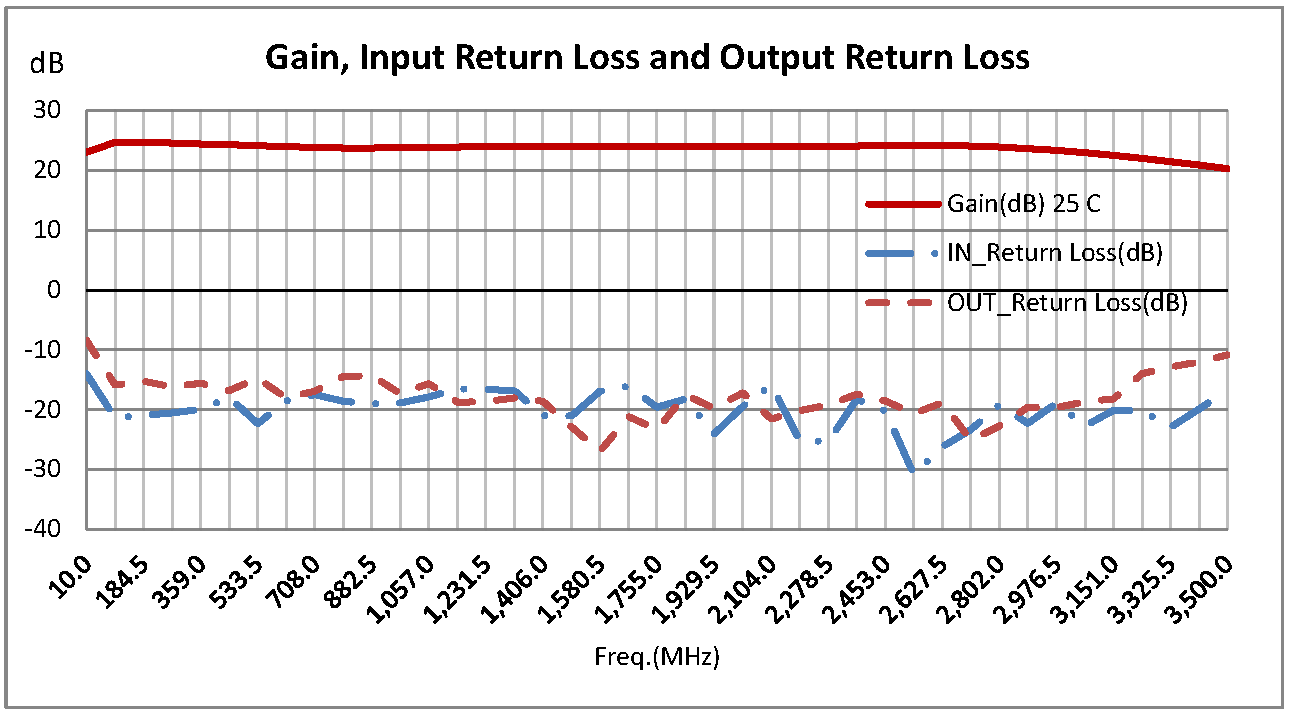

23 dBm IP3, 1.6 dB NF, 13 dBm P1dB, 20 MHz to 3 GHz, Low Noise Amplifier, 25 dB Gain, SMA PE15A1008

0.020 - 3

25

0.75

13

1.6

23

12/75

1.5 x 0.85 x 0.375

SMA

EAR99

$469.41

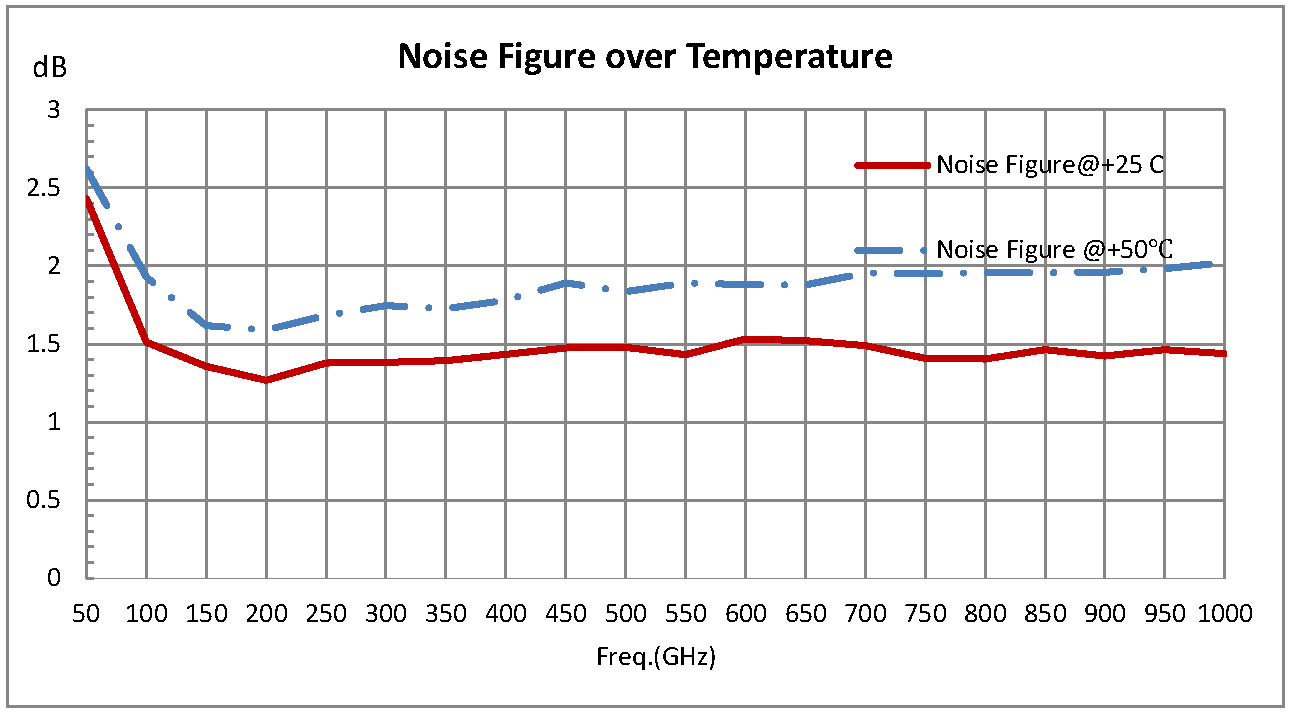

1.5 dB NF, Linear Amplifier, 23 dBm P1dB, 50 MHz to 1,000 MHz, SMA PE15A9001

0.05 - 1.0

15

0.7

23

1.5

37

12/85

1.38 x 1.18 x 0.50

SMA

EAR99

$244.12



High Gain, Low Noise

Part No.

Frequency
Band (GHz)

Gain
(dB)

Gain Variation

+/-(dB)

P1dB

(dBm)

NF

(dB)

IP3

(dBm)

DC Power

(V/mA)

Mechanical Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Price
Qty 1

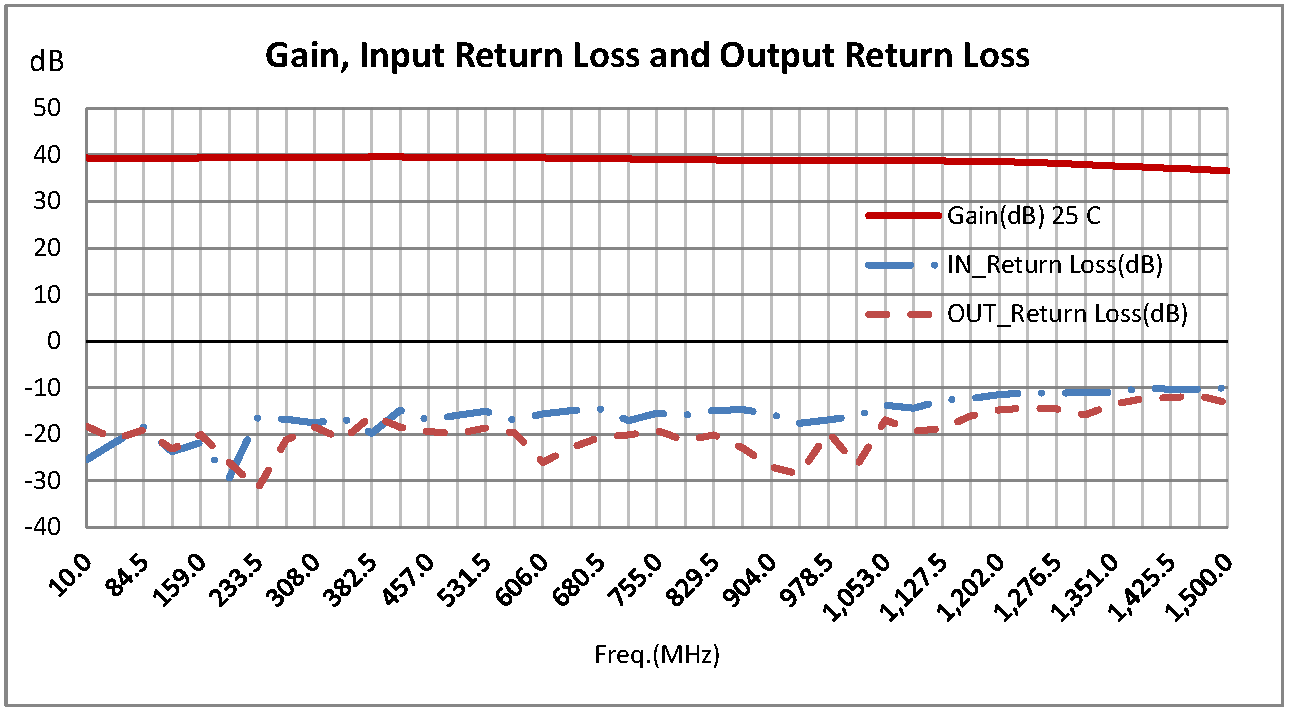

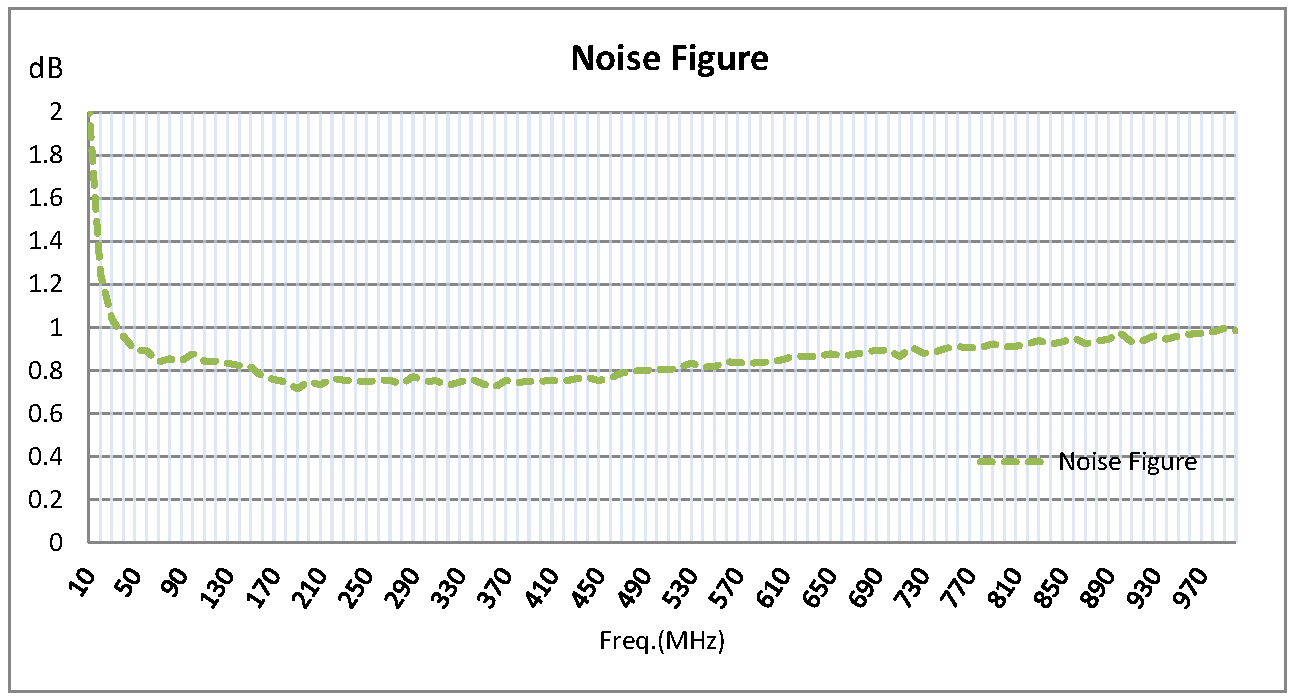

40 dB Gain, 0.8 dB NF, 18 dBm P1dB, 10 MHz to 1,000 MHz, Low Noise High Gain Amplifier SMA PE15A1012

0.010 - 1

40

1.25

18

0.8

12/110

1.5 x 0.85 x 0.375

SMA

EAR99

$382.85

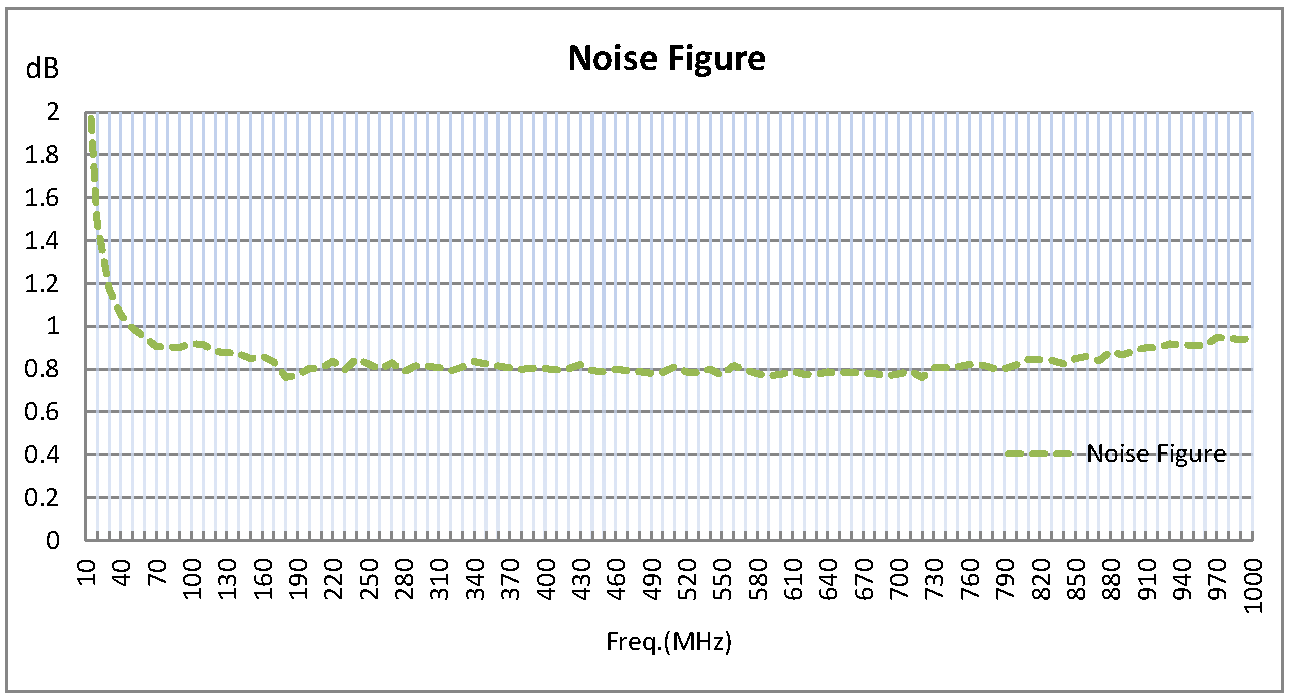

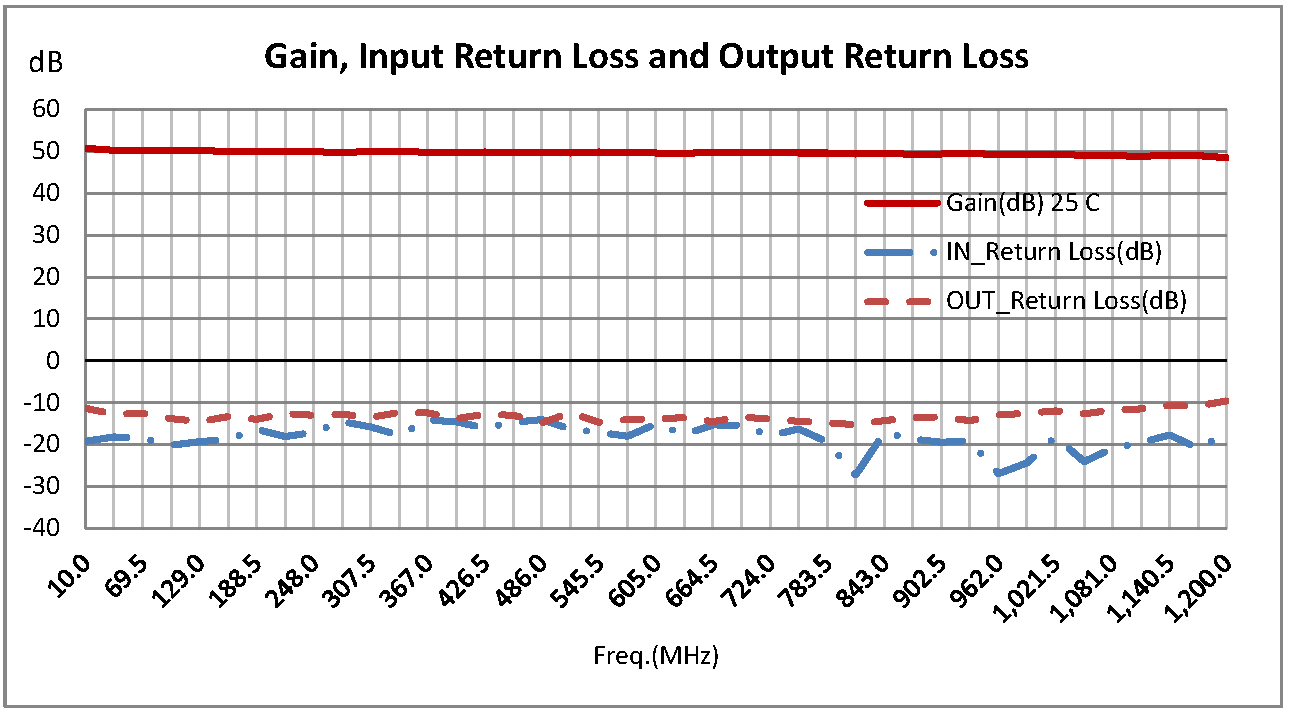

50 dB Gain, 28 dBm IP3, 1 dB NF, 18 dBm P1dB, 10 MHz to 1,000 MHz, Low Noise High Gain Amplifier SMA PE15A1013

0.010 - 1

50

1.5

18

1

28

12/130

1.5 x 0.85 x 0.375

SMA

EAR99

$402.85



Gain Block

Part No.

Frequency
Band (GHz)

Gain
(dB)

Gain Variation

+/-(dB)

P1dB

(dBm)

NF

(dB)

IP3

(dBm)

DC Power

(V/mA)

Mechanical Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Price
Qty 1

12 dBm P1dB, 50 MHz to 1,000 MHz, Gain Block Amplifier, 21 dB Gain, 3.5 dB NF, SMA PE1517

0.05 - 1.0

22

0.75

12

3.5

12/100

2.36 x 2.36 x 0.75

SMA

EAR99

$458.85


12 dBm P1dB, 50 MHz to 2 GHz, Gain Block Amplifier, 21 dB Gain, 3.5 dB NF, SMA PE1518

0.05 - 2.0

22

1

12

3.5

12/100

2.36 x 2.36 x 0.75

SMA

EAR99

$452.82


dBm P1dB, 200 MHz to 2.5 GHz, Gain Block Amplifier, 19 dB Gain, 6 dB NF, SMA PE1525

0.02 - 2.5

22

1.25

15

6

12/120

1.38 x 1.18 x 0.49

SMA

EAR99

$361.15


13 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 20 dB Gain, 2.7 dB NF, SMA PE1513

0.01 - 3.0

17

11

3.5

12/50

1.38 x 1.18 x 0.49

SMA

EAR99

$377.44


10 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 12 dB Gain, 5.5 dB NF, SMA PE1514

0.01 - 3.0

12

10

5.5

12/40

1.38 x 1.18 x 0.49

SMA

EAR99

$377.44


11 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 15 dB Gain, 3 dB NF, SMA PE1527

0.01 - 3.0

14.5

9.7

4

12

15/40

1.38 x 1.18 x 0.50

SMA

EAR99

$119.03


16 dBm P1dB, 100 MHz to 3 GHz, Gain Block Amplifier, 18 dB Gain, 6 dB NF, SMA PE1516

0.1 - 3.0

21

15

6

12/120

1.38 x 1.18 x 0.49

SMA

EAR99

$377.44



Cost Effective Low Noise and Gain Block RF Amplifiers in Coaxial Packages

These amplifiers from Pasternack provide an outstanding value and are all priced less than $500.00 USD for a single unit. Our products provide engineers a convenient and economical source of in-stock and ready to ship coaxial RF amplifier solutions. These devices are also perfectly suited for a variety of applications including military communications, electronic warfare, SATCOM, fiber optic communication systems, wireless base stations, medical patient monitoring systems and university R&D labs.

This family of RF amplifiers have P1dB levels up to +23, low VSWR and are unconditionally stable. Many of these amplifier designs utilize advanced GaAs PHEMT semiconductors for highly linear performance and high efficiency. These amplifiers exhibit outstanding noise figure levels as low as 0.5 dB and high IP3 linearity up to +37 dBm. Single DC Positive Voltage supply ranges from +12 to +15 Vdc, while bias current ranges from 40mA to 190 mA. The 50 ohm hybrid circuits require no external matching components and are enclosed in rugged metal packages with SMA connectors making them environmentally sealed from harsh elements. Designs perform across the full operational temperature range of -40°C to +85°C.
