Gain Block Amplifiers

Check out our new RF calculators & conversion tools...

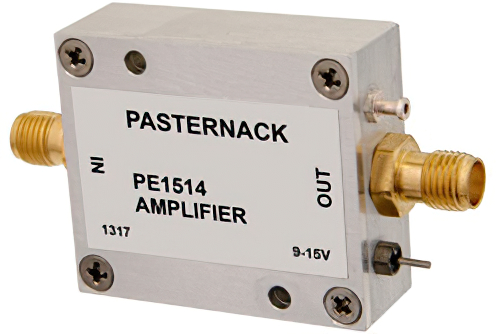

10 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 12 dB Gain, 5.5 dB NF, SMA

Product ID: PE1514
10 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 12 dB Gain, 5.5 dB NF, SMA

Image Views:  10 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 12 dB Gain, 5.5 dB NF, SMA high resolution
Zoom


Click for:PE1514 Datasheet
Click for:PE1514 RoHS Cert
Click for:PE1514 REACH Cert
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-9$450.91
10-24$428.36
25-49$405.82
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output10 dBm P1dB
Frequency, Min10 MHz
Frequency, Max3 GHz
Gain12 dB
Noise Figure, Max5.5 dB
Noise Figure, Typ5.5 dB
Voltage, DC Max15 Volts
Connector SeriesSMA


10 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 12 dB Gain, 5.5 dB NF, SMA

PE1514 RF gain block amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized gain block RF amplifier uses SMA connectors. This SMA gain block amplifier has a minimum frequency of 10 MHz, a maximum frequency of 3 GHz and a typical gain of 12 dB.

Our radio frequency gain block amp PE1514 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial gain block amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
