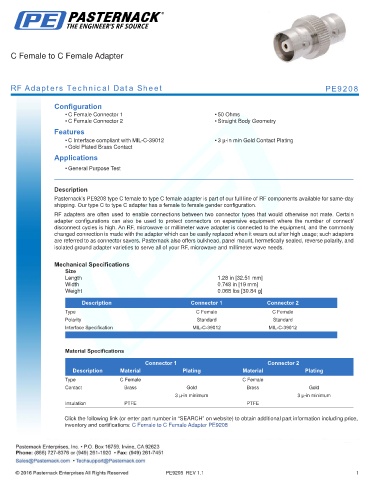

C Female to C Female Adapter

RF Adapters Technical Data Sheet PE9208

Configuration
• C Female Connector 1 • 50 Ohms
• C Female Connector 2 • Straight Body Geometry
Features
• C Interface compliant with MIL-C-39012 • 3 µ-in min Gold Contact Plating
• Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9208 type C female to type C female adapter is part of our full line of RF components available for same-day
shipping. Our type C to type C adapter has a female to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.748 in [19 mm]
Weight 0.068 lbs [30.84 g]
.
Description Connector 1 Connector 2
Type C Female C Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type C Female C Female
Contact Brass Gold Brass Gold
3 µ-in minimum 3 µ-in minimum
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female to C Female Adapter PE9208

PE9208 REV 1.1 1
