C Male to C Female Right Angle Adapter

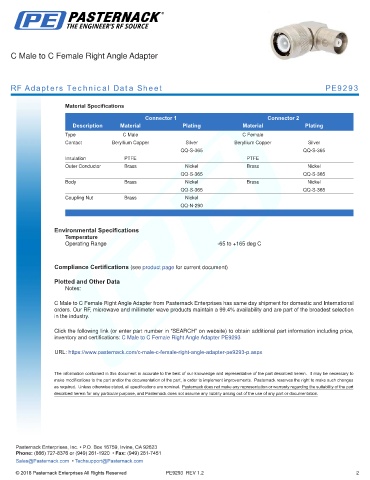

RF Adapters Technical Data Sheet PE9293

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type C Male C Female
Contact Beryllium Copper Silver Beryllium Copper Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-S-365 QQ-S-365
Body Brass Nickel Brass Nickel
QQ-S-365 QQ-S-365
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

C Male to C Female Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection
in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male to C Female Right Angle Adapter PE9293

URL: https://www.pasternack.com/c-male-c-female-right-angle-adapter-pe9293-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9293 REV 1.2 2
