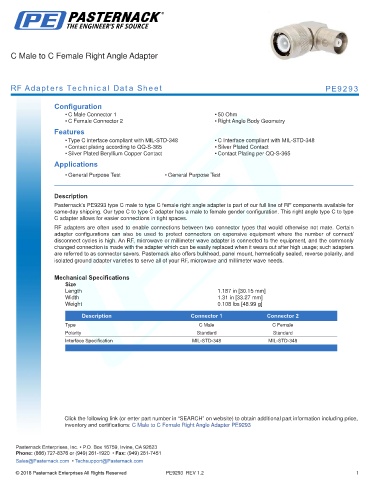

C Male to C Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9293

Configuration
• C Male Connector 1 • 50 Ohm
• C Female Connector 2 • Right Angle Body Geometry
Features
• Type C interface compliant with MIL-STD-348 • C Interface compliant with MIL-STD-348
• Contact plating according to QQ-S-365 • Silver Plated Contact
• Silver Plated Beryllium Copper Contact • Contact Plating per QQ-S-365
Applications
• General Purpose Test • General Purpose Test

.
Description
Pasternack’s PE9293 type C male to type C female right angle adapter is part of our full line of RF components available for
same-day shipping. Our type C to type C adapter has a male to female gender configuration. This right angle type C to type
C adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.187 in [30.15 mm]
Width 1.31 in [33.27 mm]
Weight 0.108 lbs [48.99 g]
.
Description Connector 1 Connector 2
Type C Male C Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male to C Female Right Angle Adapter PE9293
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
