Mini UHF Male to FME Plug Adapter

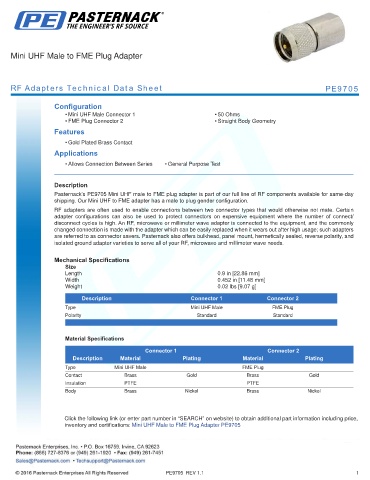

RF Adapters Technical Data Sheet PE9705

Configuration
• Mini UHF Male Connector 1 • 50 Ohms
• FME Plug Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9705 Mini UHF male to FME plug adapter is part of our full line of RF components available for same-day
shipping. Our Mini UHF to FME adapter has a male to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.9 in [22.86 mm]
Width 0.452 in [11.48 mm]
Weight 0.02 lbs [9.07 g]
.
Description Connector 1 Connector 2
Type Mini UHF Male FME Plug
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini UHF Male FME Plug
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Male to FME Plug Adapter PE9705

PE9705 REV 1.1 1
