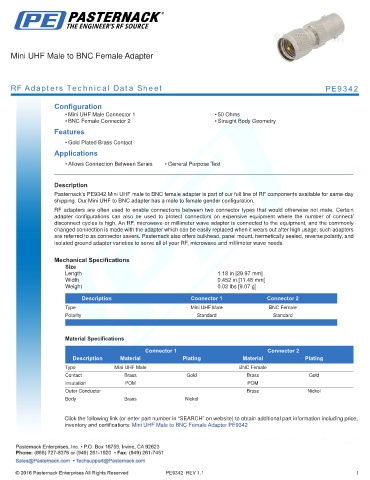

Mini UHF Male to BNC Female Adapter

RF Adapters Technical Data Sheet PE9342

Configuration
• Mini UHF Male Connector 1 • 50 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9342 Mini UHF male to BNC female adapter is part of our full line of RF components available for same-day
shipping. Our Mini UHF to BNC adapter has a male to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.18 in [29.97 mm]
Width 0.452 in [11.48 mm]
Weight 0.02 lbs [9.07 g]
.
Description Connector 1 Connector 2
Type Mini UHF Male BNC Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini UHF Male BNC Female
Contact Brass Gold Brass Gold
Insulation POM POM
Outer Conductor Brass Nickel
Body Brass Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Male to BNC Female Adapter PE9342

PE9342 REV 1.1 1
