Mini UHF Tee Adapter Female-Female-Female

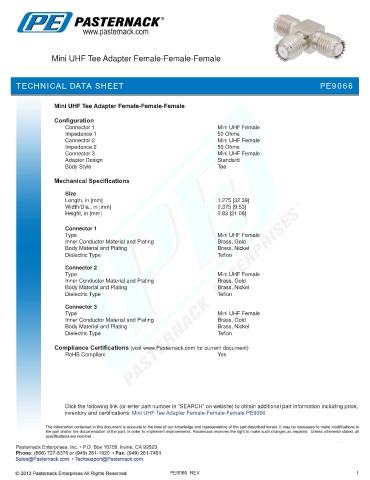

TECHNICAL DATA SHEET PE9066

Mini UHF Tee Adapter Female-Female-Female

Configuration
Connector 1 Mini UHF Female
Impedance 1 50 Ohms
Connector 2 Mini UHF Female
Impedance 2 50 Ohms
Connector 3 Mini UHF Female
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 1.275 [32.39]
Width/Dia., in [mm] 0.375 [9.53]
Height, in [mm] 0.83 [21.08]
.
Connector 1
Type Mini UHF Female
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type Mini UHF Female
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 3
Type Mini UHF Female
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Tee Adapter Female-Female-Female PE9066

PE9066 REV 1
