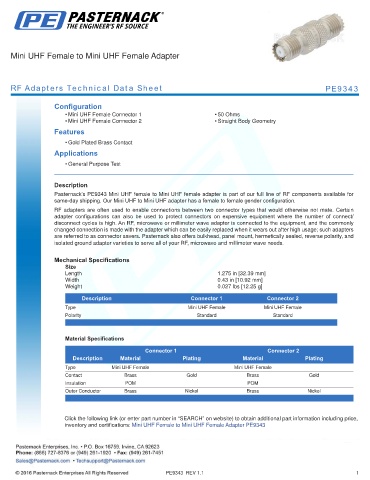

Mini UHF Female to Mini UHF Female Adapter

RF Adapters Technical Data Sheet PE9343

Configuration
• Mini UHF Female Connector 1 • 50 Ohms
• Mini UHF Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9343 Mini UHF female to Mini UHF female adapter is part of our full line of RF components available for
same-day shipping. Our Mini UHF to Mini UHF adapter has a female to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.275 in [32.39 mm]
Width 0.43 in [10.92 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type Mini UHF Female Mini UHF Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini UHF Female Mini UHF Female
Contact Brass Gold Brass Gold
Insulation POM POM
Outer Conductor Brass Nickel Brass Nickel
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Female to Mini UHF Female Adapter PE9343

PE9343 REV 1.1 1
