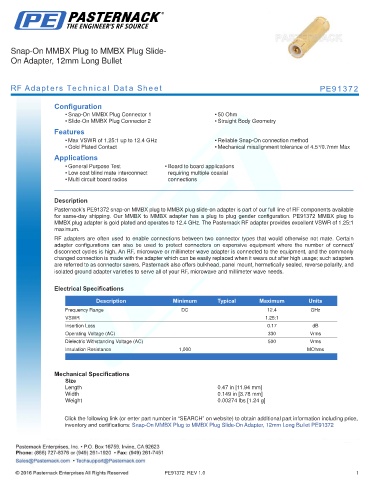

Snap-On MMBX Plug to MMBX Plug Slide-
On Adapter, 12mm Long Bullet

RF Adapters Technical Data Sheet PE91372

Configuration
• Snap-On MMBX Plug Connector 1 • 50 Ohm
• Slide-On MMBX Plug Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 12.4 GHz • Reliable Snap-On connection method
• Gold Plated Contact • Mechanical misalignment tolerance of 4.5°/0.7mm Max
Applications
• General Purpose Test • Board to board applications
• Low cost blind mate interconnect requiring multiple coaxial
• Multi circuit board radios connections
.
Description
Pasternack’s PE91372 snap-on MMBX plug to MMBX plug slide-on adapter is part of our full line of RF components available
for same-day shipping. Our MMBX to MMBX adapter has a plug to plug gender configuration. PE91372 MMBX plug to
MMBX plug adapter is gold plated and operates to 12.4 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1
maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.25:1
Insertion Loss 0.17 dB
Operating Voltage (AC) 330 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Insulation Resistance 1,000 MOhms
. .

Mechanical Specifications
Size
Length 0.47 in [11.94 mm]
Width 0.149 in [3.78 mm]
Weight 0.00274 lbs [1.24 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On MMBX Plug to MMBX Plug Slide-On Adapter, 12mm Long Bullet PE91372

PE91372 REV 1.0 1
