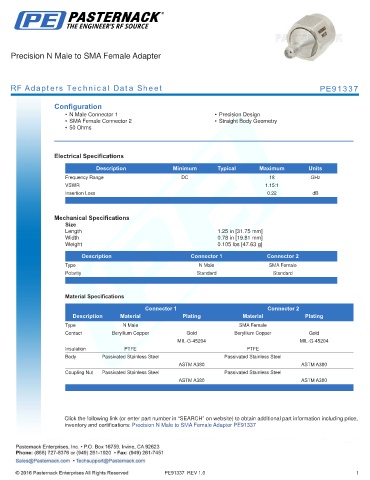

Precision N Male to SMA Female Adapter

RF Adapters Technical Data Sheet PE91337

Configuration
• N Male Connector 1 • Precision Design
• SMA Female Connector 2 • Straight Body Geometry
• 50 Ohms
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Insertion Loss 0.22 dB
. .

Mechanical Specifications
Size
Length 1.25 in [31.75 mm]
Width 0.78 in [19.81 mm]
Weight 0.105 lbs [47.63 g]
.
Description Connector 1 Connector 2
Type N Male SMA Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Body Passivated Stainless Steel Passivated Stainless Steel
ASTM A380 ASTM A380
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
ASTM A380 ASTM A380
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Male to SMA Female Adapter PE91337

PE91337 REV 1.0 1
