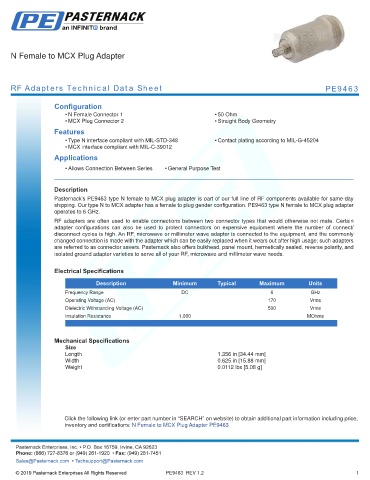

N Female to MCX Plug Adapter

RF Adapters Technical Data Sheet PE9463

Configuration
• N Female Connector 1 • 50 Ohm
• MCX Plug Connector 2 • Straight Body Geometry
Features
• Type N interface compliant with MIL-STD-348 • Contact plating according to MIL-G-45204
• MCX interface compliant with MIL-C-39012
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9463 type N female to MCX plug adapter is part of our full line of RF components available for same-day
shipping. Our type N to MCX adapter has a female to plug gender configuration. PE9463 type N female to MCX plug adapter
operates to 6 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 170 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Insulation Resistance 1,000 MOhms
. .

Mechanical Specifications
Size
Length 1.356 in [34.44 mm]
Width 0.625 in [15.88 mm]
Weight 0.0112 lbs [5.08 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to MCX Plug Adapter PE9463
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9463 REV 1.2 1
