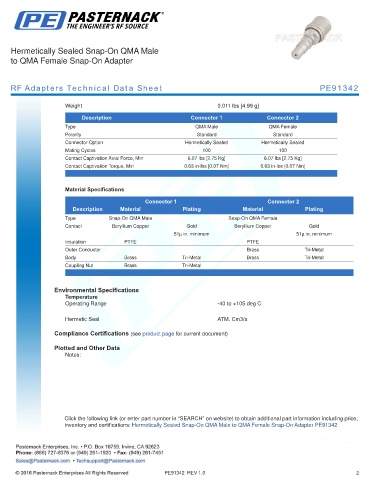

Hermetically Sealed Snap-On QMA Male
to QMA Female Snap-On Adapter

RF Adapters Technical Data Sheet PE91342

Weight 0.011 lbs [4.99 g]
.
Description Connector 1 Connector 2
Type QMA Male QMA Female
Polarity Standard Standard
Connector Option Hermetically Sealed Hermetically Sealed
Mating Cycles 100 100
Contact Captivation Axial Force, Min 6.07 lbs [2.75 Kg] 6.07 lbs [2.75 Kg]
Contact Captivation Torque, Min 0.63 in-lbs [0.07 Nm] 0.63 in-lbs [0.07 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Snap-On QMA Male Snap-On QMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
51µ in. minimum 51µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
Body Brass Tri-Metal Brass Tri-Metal
Coupling Nut Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -40 to +105 deg C
.
Hermetic Seal ATM. Cm3/s

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Hermetically Sealed Snap-On QMA Male to QMA Female Snap-On Adapter PE91342

PE91342 REV 1.0 2
