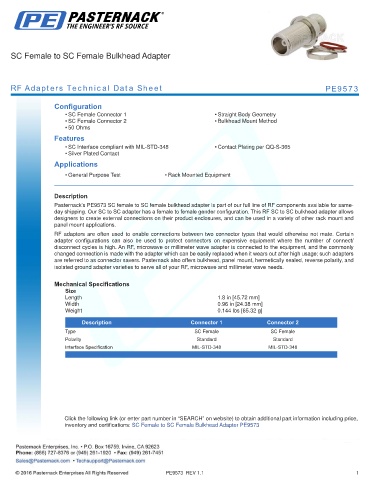

SC Female to SC Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9573

Configuration
• SC Female Connector 1 • Straight Body Geometry
• SC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• SC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9573 SC female to SC female bulkhead adapter is part of our full line of RF components available for same-
day shipping. Our SC to SC adapter has a female to female gender configuration. This RF SC to SC bulkhead adapter allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.8 in [45.72 mm]
Width 0.96 in [24.38 mm]
Weight 0.144 lbs [65.32 g]
.
Description Connector 1 Connector 2
Type SC Female SC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SC Female to SC Female Bulkhead Adapter PE9573

PE9573 REV 1.1 1
