SC Male to BNC Male Adapter

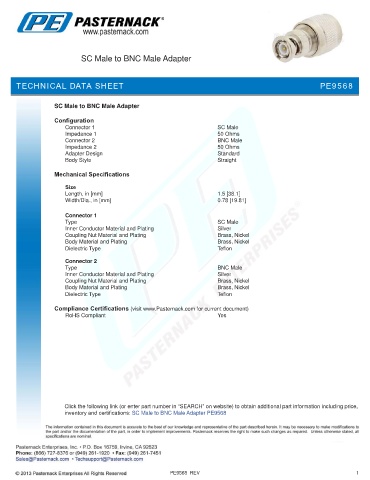

TECHNICAL DATA SHEET PE9568

SC Male to BNC Male Adapter

Configuration
Connector 1 SC Male
Impedance 1 50 Ohms
Connector 2 BNC Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.5 [38.1]
Width/Dia., in [mm] 0.78 [19.81]
.
Connector 1
Type SC Male
Inner Conductor Material and Plating Silver
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type BNC Male
Inner Conductor Material and Plating Silver
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SC Male to BNC Male Adapter PE9568

PE9568 REV 1
