SC Female to BNC Female Adapter

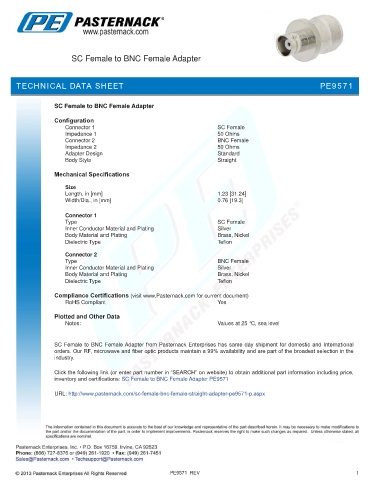

TECHNICAL DATA SHEET PE9571

SC Female to BNC Female Adapter

Configuration
Connector 1 SC Female
Impedance 1 50 Ohms
Connector 2 BNC Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.23 [31.24]
Width/Dia., in [mm] 0.76 [19.3]
.
Connector 1
Type SC Female
Inner Conductor Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type BNC Female
Inner Conductor Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

SC Female to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SC Female to BNC Female Adapter PE9571

URL: http://www.pasternack.com/sc-female-bnc-female-straight-adapter-pe9571-p.aspx

PE9571 REV 1
