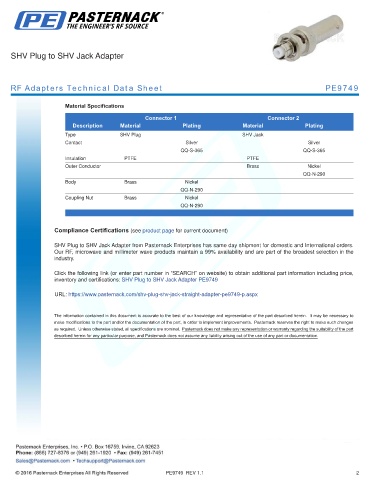

SHV Plug to SHV Jack Adapter

RF Adapters Technical Data Sheet PE9749

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SHV Plug SHV Jack
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Compliance Certifications (see product page for current document)

SHV Plug to SHV Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SHV Plug to SHV Jack Adapter PE9749

URL: https://www.pasternack.com/shv-plug-shv-jack-straight-adapter-pe9749-p.aspx

PE9749 REV 1.1 2
