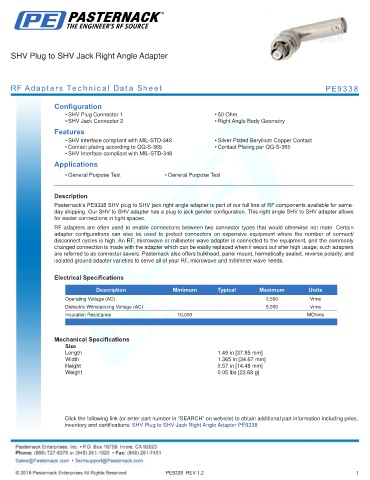

SHV Plug to SHV Jack Right Angle Adapter

RF Adapters Technical Data Sheet PE9338

Configuration
• SHV Plug Connector 1 • 50 Ohm
• SHV Jack Connector 2 • Right Angle Body Geometry
Features
• SHV interface compliant with MIL-STD-348 • Silver Plated Beryllium Copper Contact
• Contact plating according to QQ-S-365 • Contact Plating per QQ-S-365
• SHV Interface compliant with MIL-STD-348
Applications
• General Purpose Test • General Purpose Test

.
Description
Pasternack’s PE9338 SHV plug to SHV jack right angle adapter is part of our full line of RF components available for same-
day shipping. Our SHV to SHV adapter has a plug to jack gender configuration. This right angle SHV to SHV adapter allows
for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 3,500 Vrms
Dielectric Withstanding Voltage (AC) 5,000 Vrms
Insulation Resistance 10,000 MOhms
. .

Mechanical Specifications
Size
Length 1.49 in [37.85 mm]
Width 1.365 in [34.67 mm]
Height 0.57 in [14.48 mm]
Weight 0.05 lbs [22.68 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SHV Plug to SHV Jack Right Angle Adapter PE9338

PE9338 REV 1.2 1
