SHV Plug to SHV Jack Adapter

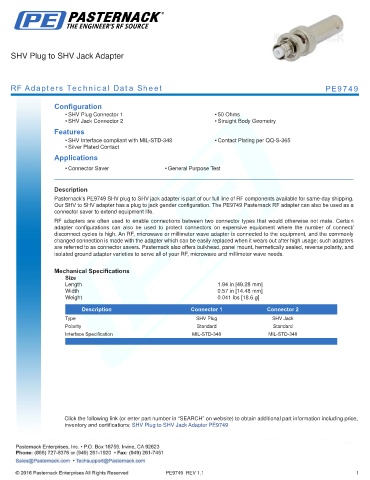

RF Adapters Technical Data Sheet PE9749

Configuration
• SHV Plug Connector 1 • 50 Ohms
• SHV Jack Connector 2 • Straight Body Geometry
Features
• SHV Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• Connector Saver • General Purpose Test
.
Description
Pasternack’s PE9749 SHV plug to SHV jack adapter is part of our full line of RF components available for same-day shipping.
Our SHV to SHV adapter has a plug to jack gender configuration. The PE9749 Pasternack RF adapter can also be used as a
connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.94 in [49.28 mm]
Width 0.57 in [14.48 mm]
Weight 0.041 lbs [18.6 g]
.
Description Connector 1 Connector 2
Type SHV Plug SHV Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SHV Plug to SHV Jack Adapter PE9749

PE9749 REV 1.1 1
