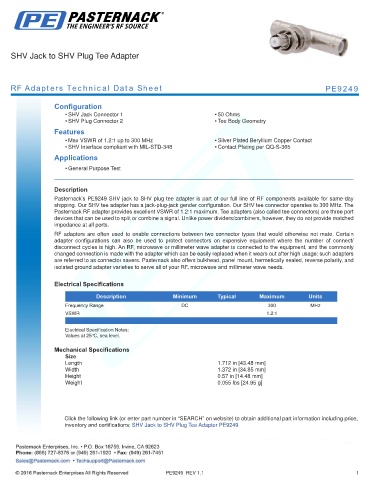

SHV Jack to SHV Plug Tee Adapter

RF Adapters Technical Data Sheet PE9249

Configuration
• SHV Jack Connector 1 • 50 Ohms
• SHV Plug Connector 2 • Tee Body Geometry
Features
• Max VSWR of 1.2:1 up to 300 MHz • Silver Plated Beryllium Copper Contact
• SHV Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
Applications
• General Purpose Test
.
Description
Pasternack’s PE9249 SHV jack to SHV plug tee adapter is part of our full line of RF components available for same-day
shipping. Our SHV tee adapter has a jack-plug-jack gender configuration. Our SHV tee connector operates to 300 MHz. The
Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum. Tee adapters (also called tee connectors) are three port
devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not provide matched
impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.712 in [43.48 mm]
Width 1.372 in [34.85 mm]
Height 0.57 in [14.48 mm]
Weight 0.055 lbs [24.95 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SHV Jack to SHV Plug Tee Adapter PE9249

PE9249 REV 1.1 1
