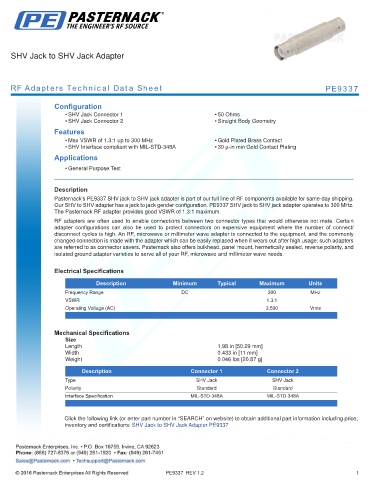

SHV Jack to SHV Jack Adapter

RF Adapters Technical Data Sheet PE9337

Configuration
• SHV Jack Connector 1 • 50 Ohms
• SHV Jack Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 300 MHz • Gold Plated Brass Contact
• SHV Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9337 SHV jack to SHV jack adapter is part of our full line of RF components available for same-day shipping.
Our SHV to SHV adapter has a jack to jack gender configuration. PE9337 SHV jack to SHV jack adapter operates to 300 MHz.
The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 3,500 Vrms
. .

Mechanical Specifications
Size
Length 1.98 in [50.29 mm]
Width 0.433 in [11 mm]
Weight 0.046 lbs [20.87 g]
.
Description Connector 1 Connector 2
Type SHV Jack SHV Jack
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SHV Jack to SHV Jack Adapter PE9337

PE9337 REV 1.2 1
