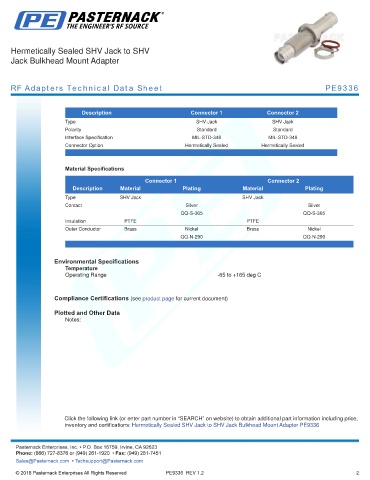

Hermetically Sealed SHV Jack to SHV
Jack Bulkhead Mount Adapter
RF Adapters Technical Data Sheet PE9336
.
Description Connector 1 Connector 2
Type SHV Jack SHV Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Connector Option Hermetically Sealed Hermetically Sealed
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SHV Jack SHV Jack
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Hermetically Sealed SHV Jack to SHV Jack Bulkhead Mount Adapter PE9336
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE9336 REV 1.2 2
