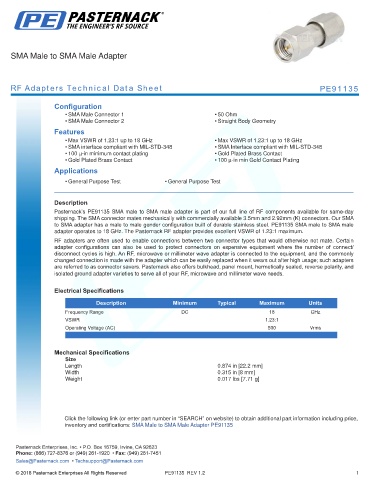

SMA Male to SMA Male Adapter

RF Adapters Technical Data Sheet PE91135

Configuration
• SMA Male Connector 1 • 50 Ohm
• SMA Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.23:1 up to 18 GHz • Max VSWR of 1.23:1 up to 18 GHz
• SMA interface compliant with MIL-STD-348 • SMA Interface compliant with MIL-STD-348
• 100 µ-in minimum contact plating • Gold Plated Brass Contact
• Gold Plated Brass Contact • 100 µ-in min Gold Contact Plating
Applications

• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE91135 SMA male to SMA male adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to SMA adapter has a male to male gender configuration built of durable stainless steel. PE91135 SMA male to SMA male
adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.23:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.23:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 0.874 in [22.2 mm]
Width 0.315 in [8 mm]
Weight 0.017 lbs [7.71 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Male Adapter PE91135
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91135 REV 1.2 1
