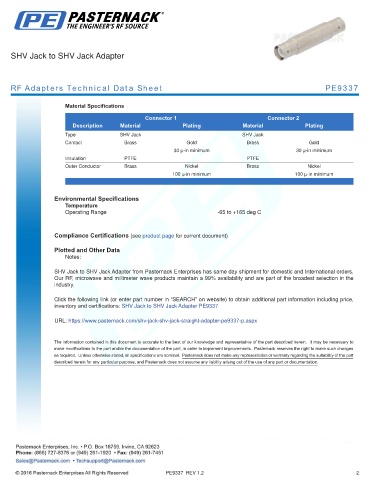

SHV Jack to SHV Jack Adapter

RF Adapters Technical Data Sheet PE9337

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SHV Jack SHV Jack
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

SHV Jack to SHV Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SHV Jack to SHV Jack Adapter PE9337

URL: https://www.pasternack.com/shv-jack-shv-jack-straight-adapter-pe9337-p.aspx

PE9337 REV 1.2 2
