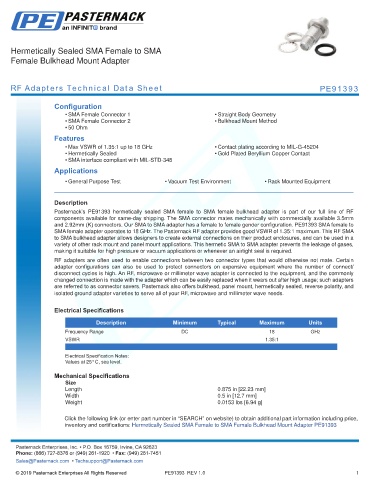

Hermetically Sealed SMA Female to SMA
Female Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE91393

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• SMA Female Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.35:1 up to 18 GHz • Contact plating according to MIL-G-45204
• Hermetically Sealed • Gold Plated Beryllium Copper Contact
• SMA interface compliant with MIL-STD-348
Applications

• General Purpose Test • Vacuum Test Environment • Rack Mounted Equipment
.
Description
Pasternack’s PE91393 hermetically sealed SMA female to SMA female bulkhead adapter is part of our full line of RF
components available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm
and 2.92mm (K) connectors. Our SMA to SMA adapter has a female to female gender configuration. PE91393 SMA female to
SMA female adapter operates to 18 GHz. The Pasternack RF adapter provides good VSWR of 1.35:1 maximum. This RF SMA
to SMA bulkhead adapter allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications. This hermetic SMA to SMA adapter prevents the leakage of gases,
making it suitable for high pressure or vacuum applications or whenever an airtight seal is required.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.35:1
. .
Electrical Specification Notes:
Values at 25° C, sea level.

Mechanical Specifications
Size
Length 0.875 in [22.23 mm]
Width 0.5 in [12.7 mm]
Weight 0.0153 lbs [6.94 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Hermetically Sealed SMA Female to SMA Female Bulkhead Mount Adapter PE91393
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91393 REV 1.0 1
