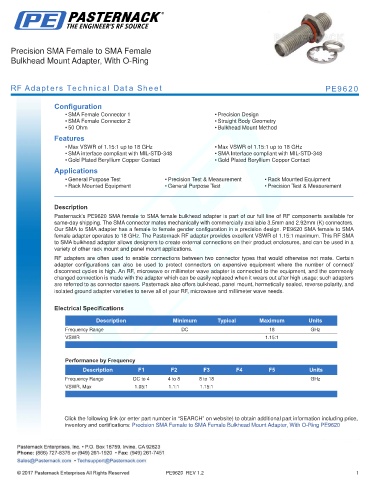

Precision SMA Female to SMA Female
Bulkhead Mount Adapter, With O-Ring

RF Adapters Technical Data Sheet PE9620

Configuration
• SMA Female Connector 1 • Precision Design
• SMA Female Connector 2 • Straight Body Geometry
• 50 Ohm • Bulkhead Mount Method
Features
• Max VSWR of 1.15:1 up to 18 GHz • Max VSWR of 1.15:1 up to 18 GHz
• SMA interface compliant with MIL-STD-348 • SMA Interface compliant with MIL-STD-348
• Gold Plated Beryllium Copper Contact • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Precision Test & Measurement • Rack Mounted Equipment
• Rack Mounted Equipment • General Purpose Test • Precision Test & Measurement
.
Description
Pasternack’s PE9620 SMA female to SMA female bulkhead adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a female to female gender configuration in a precision design. PE9620 SMA female to SMA
female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum. This RF SMA
to SMA bulkhead adapter allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 4 4 to 8 8 to 18 GHz
VSWR, Max 1.05:1 1.1:1 1.15:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to SMA Female Bulkhead Mount Adapter, With O-Ring PE9620

PE9620 REV 1.2 1
