SMA Female to SMA Female Bulkhead Adapter

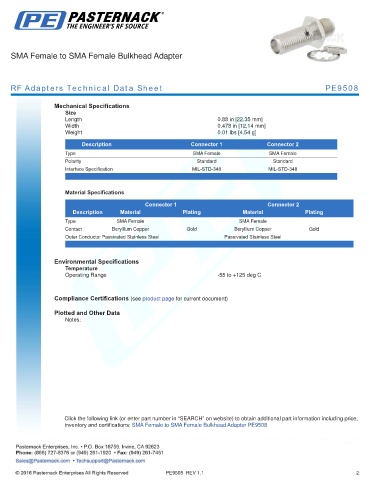

RF Adapters Technical Data Sheet PE9508

Mechanical Specifications
Size
Length 0.88 in [22.35 mm]
Width 0.478 in [12.14 mm]
Weight 0.01 lbs [4.54 g]
.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Bulkhead Adapter PE9508

PE9508 REV 1.1 2
