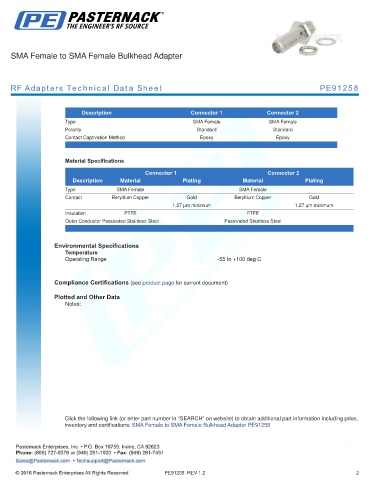

SMA Female to SMA Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE91258

.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
Contact Captivation Method Epoxy Epoxy
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
1.27 µm minimum 1.27 µm minimum
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Bulkhead Adapter PE91258

PE91258 REV 1.2 2
