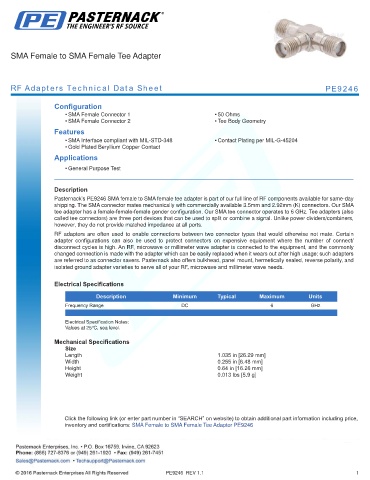

SMA Female to SMA Female Tee Adapter

RF Adapters Technical Data Sheet PE9246

Configuration
• SMA Female Connector 1 • 50 Ohms
• SMA Female Connector 2 • Tee Body Geometry
Features
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9246 SMA female to SMA female tee adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
tee adapter has a female-female-female gender configuration. Our SMA tee connector operates to 6 GHz. Tee adapters (also
called tee connectors) are three port devices that can be used to split or combine a signal. Unlike power dividers/combiners,
however, they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.035 in [26.29 mm]
Width 0.255 in [6.48 mm]
Height 0.64 in [16.26 mm]
Weight 0.013 lbs [5.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Tee Adapter PE9246

PE9246 REV 1.1 1
