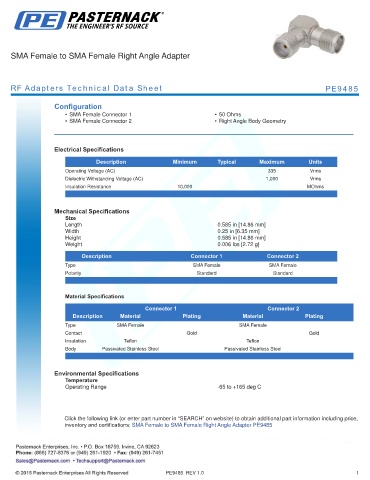

SMA Female to SMA Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9485

Configuration
• SMA Female Connector 1 • 50 Ohms
• SMA Female Connector 2 • Right Angle Body Geometry

.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Insulation Resistance 10,000 MOhms
. .

Mechanical Specifications
Size
Length 0.585 in [14.86 mm]
Width 0.25 in [6.35 mm]
Height 0.585 in [14.86 mm]
Weight 0.006 lbs [2.72 g]
.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Gold Gold
Insulation Teflon Teflon
Body Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Right Angle Adapter PE9485

PE9485 REV 1.0 1
