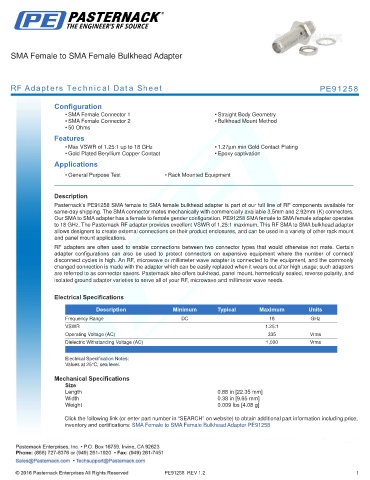

SMA Female to SMA Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE91258

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• SMA Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Max VSWR of 1.25:1 up to 18 GHz • 1.27µm min Gold Contact Plating
• Gold Plated Beryllium Copper Contact • Epoxy captivation
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE91258 SMA female to SMA female bulkhead adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a female to female gender configuration. PE91258 SMA female to SMA female adapter operates
to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. This RF SMA to SMA bulkhead adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.88 in [22.35 mm]
Width 0.38 in [9.65 mm]
Weight 0.009 lbs [4.08 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Bulkhead Adapter PE91258

PE91258 REV 1.2 1
