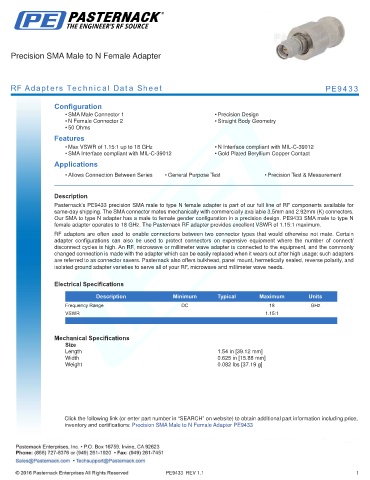

Precision SMA Male to N Female Adapter

RF Adapters Technical Data Sheet PE9433

Configuration
• SMA Male Connector 1 • Precision Design
• N Female Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 18 GHz • N Interface compliant with MIL-C-39012
• SMA Interface compliant with MIL-C-39012 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9433 precision SMA male to type N female adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to type N adapter has a male to female gender configuration in a precision design. PE9433 SMA male to type N
female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .

Mechanical Specifications
Size
Length 1.54 in [39.12 mm]
Width 0.625 in [15.88 mm]
Weight 0.082 lbs [37.19 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to N Female Adapter PE9433

PE9433 REV 1.1 1
