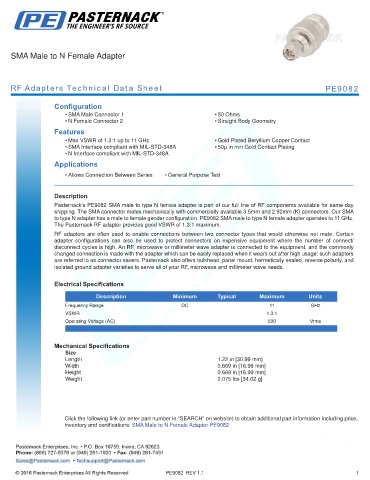

SMA Male to N Female Adapter

RF Adapters Technical Data Sheet PE9082

Configuration
• SMA Male Connector 1 • 50 Ohms
• N Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 11 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348A • 50µ in min Gold Contact Plating
• N Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9082 SMA male to type N female adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to type N adapter has a male to female gender configuration. PE9082 SMA male to type N female adapter operates to 11 GHz.
The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.22 in [30.99 mm]
Width 0.669 in [16.99 mm]
Height 0.669 in [16.99 mm]
Weight 0.075 lbs [34.02 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to N Female Adapter PE9082

PE9082 REV 1.1 1
