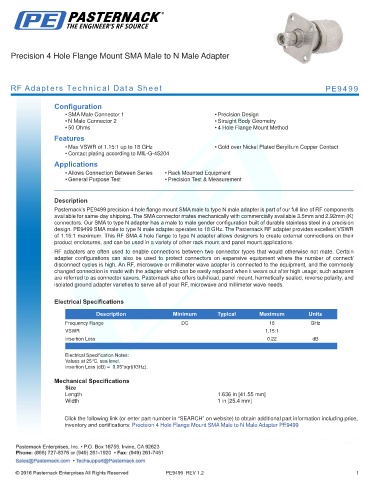

Precision 4 Hole Flange Mount SMA Male to N Male Adapter

RF Adapters Technical Data Sheet PE9499

Configuration
• SMA Male Connector 1 • Precision Design
• N Male Connector 2 • Straight Body Geometry
• 50 Ohms • 4 Hole Flange Mount Method
Features
• Max VSWR of 1.15:1 up to 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• Allows Connection Between Series • Rack Mounted Equipment
• General Purpose Test • Precision Test & Measurement
.
Description
Pasternack’s PE9499 precision 4 hole flange mount SMA male to type N male adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K)
connectors. Our SMA to type N adapter has a male to male gender configuration built of durable stainless steel in a precision
design. PE9499 SMA male to type N male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR
of 1.15:1 maximum. This RF SMA 4 hole flange to type N adapter allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Insertion Loss 0.22 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 1.636 in [41.55 mm]
Width 1 in [25.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 4 Hole Flange Mount SMA Male to N Male Adapter PE9499

PE9499 REV 1.2 1
