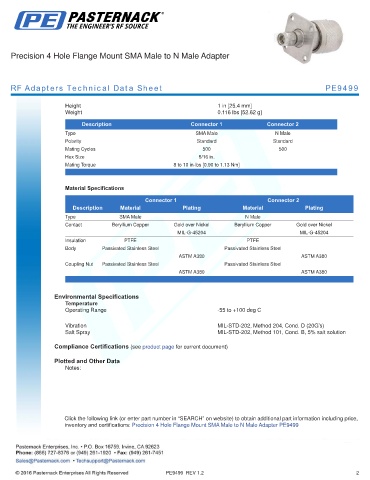

Precision 4 Hole Flange Mount SMA Male to N Male Adapter

RF Adapters Technical Data Sheet PE9499

Height 1 in [25.4 mm]
Weight 0.116 lbs [52.62 g]
.
Description Connector 1 Connector 2
Type SMA Male N Male
Polarity Standard Standard
Mating Cycles 500 500
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male N Male
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Body Passivated Stainless Steel Passivated Stainless Steel
ASTM A380 ASTM A380
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
ASTM A380 ASTM A380
. .

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
.
Vibration MIL-STD-202, Method 204, Cond. D (20G’s)
Salt Spray MIL-STD-202, Method 101, Cond. B, 5% salt solution

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 4 Hole Flange Mount SMA Male to N Male Adapter PE9499
