SMA Male to SMP Male Limited Detent Adapter

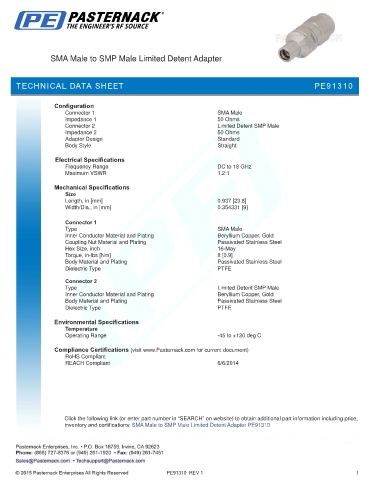

TECHNICAL DATA SHEET PE91310

Configuration
Connector 1 SMA Male
Impedance 1 50 Ohms
Connector 2 Limited Detent SMP Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 18 GHz
Maximum VSWR 1.2:1

Mechanical Specifications
Size
Length, in [mm] 0.937 [23.8]
Width/Dia., in [mm] 0.354331 [9]
.
Connector 1
Type SMA Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size, inch 16-May
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE
Connector 2
Type Limited Detent SMP Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE

Environmental Specifications
Temperature
Operating Range -45 to +120 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 6/6/2014

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMP Male Limited Detent Adapter PE91310

PE91310 REV 1 1
